- Instrument control
- Motor power: 4.0kW (servo)
- Speed: 0.1-150rpm
- Torque: 0-200Nm

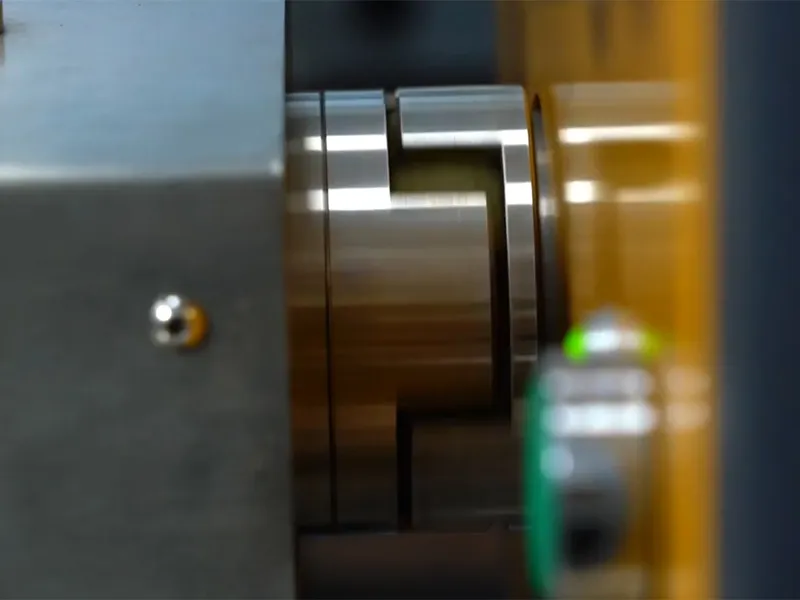

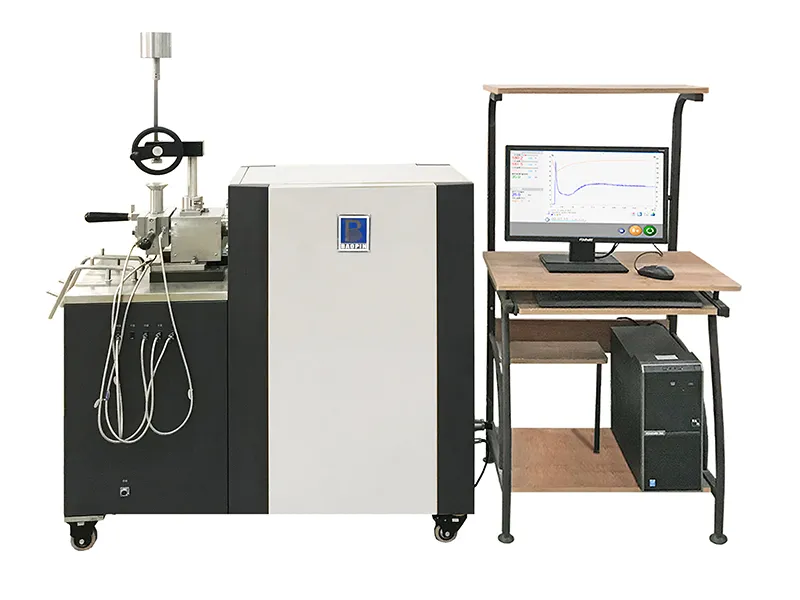

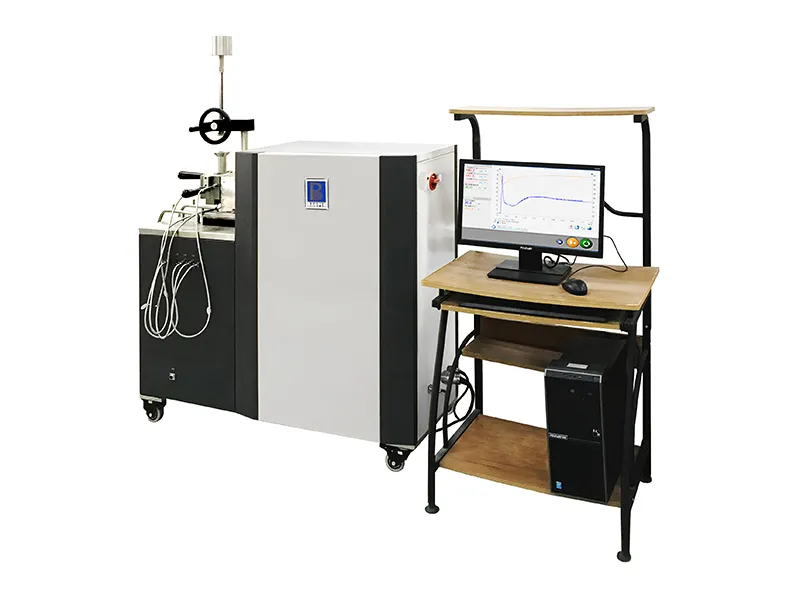

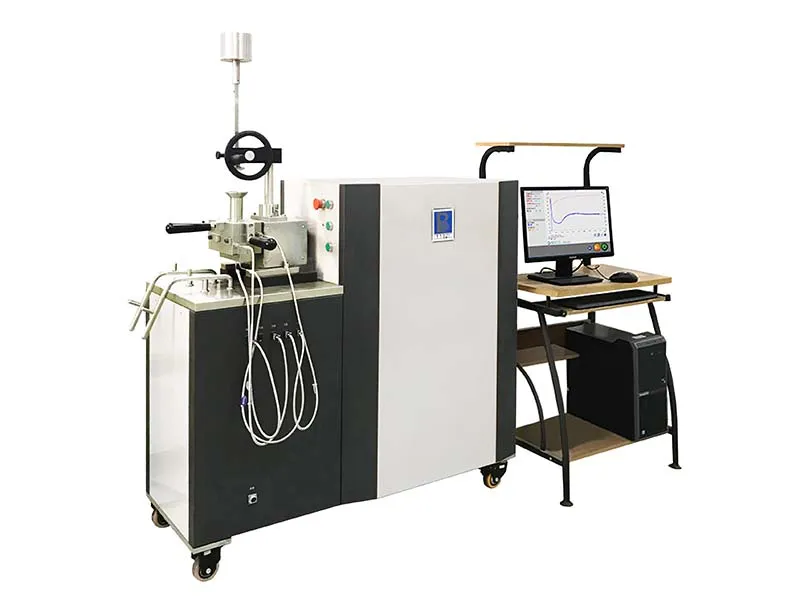

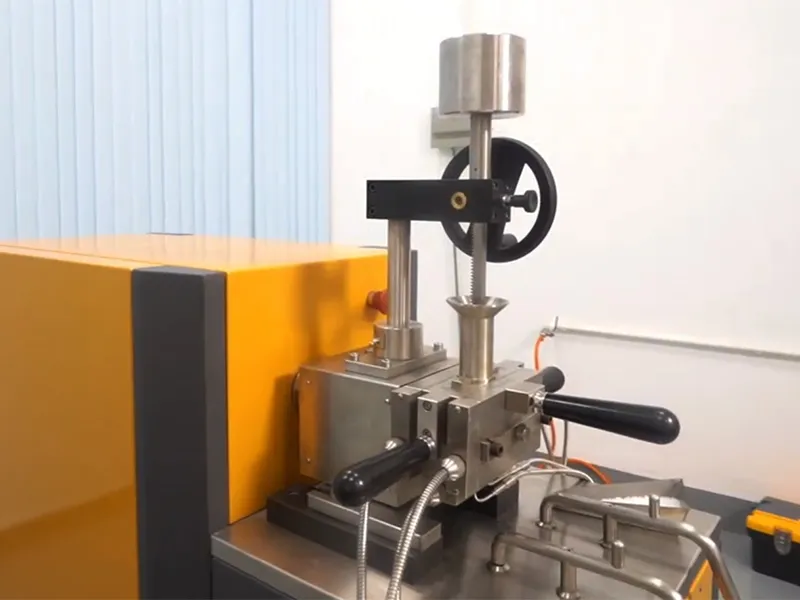

The torque rheometer is designed for studying the flow, plasticization, thermal stability, and shear stability of materials. Similar to an internal mixer, the mixing platform measures the relationship between torque and temperature, speed and time, and generates rheological curves for further analysis. This torque rheometer accurately simulates material behavior under processing conditions, providing continuous and reliable data for polymer processing optimization.
Optimize your material research and testing with the torque rheometer, ensuring precise measurement and analysis of material properties.
Technical Data
- Motor power
4.0kW (servo) - Reduction ratio
1:20 - Speed range
0.1-150rpm - Speed deviation
±0.5%F.S. - Torque range
0-200Nm - Torque deviation
±0.1%F.S. - Melt pressure range
0.1-100MPa - Melt pressure deviation
±0.5%F.S. - Electric control system
Including rotation speed, temperature, pressure, torque, and other functions. - Testing software
Mixing unit data processing software, extrusion unit data processing software, polymer melt measurement data processing software.
