BP-8172-B Laboratory Internal Mixer

Laboratory Equipment

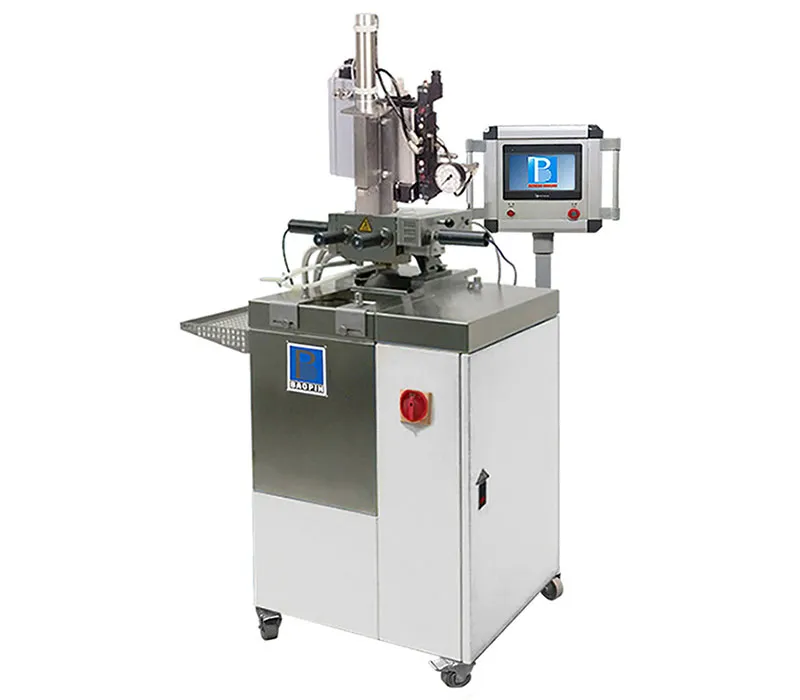

BP-8172-B Laboratory Internal Mixer

Laboratory mixers for mixing, dispersing, kneading, plasticizing and formula testing of rubber, plastic, and other polymers

Request a Quote

Products Brochure

Chamber volume: 0.2L/0.5L
PLC control
Electric heating

The laboratory internal mixer is designed for the efficient mixing and kneading of plastics and chemical raw materials with minimal material usage. Known for its excellent mixing performance, easy operation, and compact size, it’s ideal for use in factories, universities, and research institutions.

Applications
The laboratory internal mixer is perfect for mixing and kneading plastics, rubber, composite materials, chemical additives, and functional materials. It's widely used for new material development, material modification, formula optimization, and process validation in various industries.

Mixing and kneading of plastic, rubber, and composite materials
Research and small-batch production of chemical additives
Material development, formula optimization, and process validation

Technical Data

Chamber volume
0.2L/0.5L

Temperature range
Room temperature to 300℃

Heating method
Electric heating, 3 heating zones

Heating power
1.5kW

Controller
PLC programmable color touch screen with a man-machine interface system, allowing arbitrary setting and control of all parameters. The mixing process (including temperature, time, speed, and other parameter curve changes) is displayed dynamically.

Timing range
0.1s-99m-9.9hr (settable time), with buzzer alarm

Feeding method
Direct feeding

Rotor type
Roller (standard)

Speed ratio
3:2

Rotor speed
0-120rpm, frequency conversion speed regulation

Main motor power
2.2kW/3.7kW

Power supply
AC380V, 12A, 3-phase 5-wire (power connection port is provided by user)
