Laboratory Equipment
-
Laboratory Equipment
- Instrument control
- Screw diameter: 12/15mm (others on request)
- L/D ratio: 28:1
- Film thickness: 0.05-0.10mm adjustable

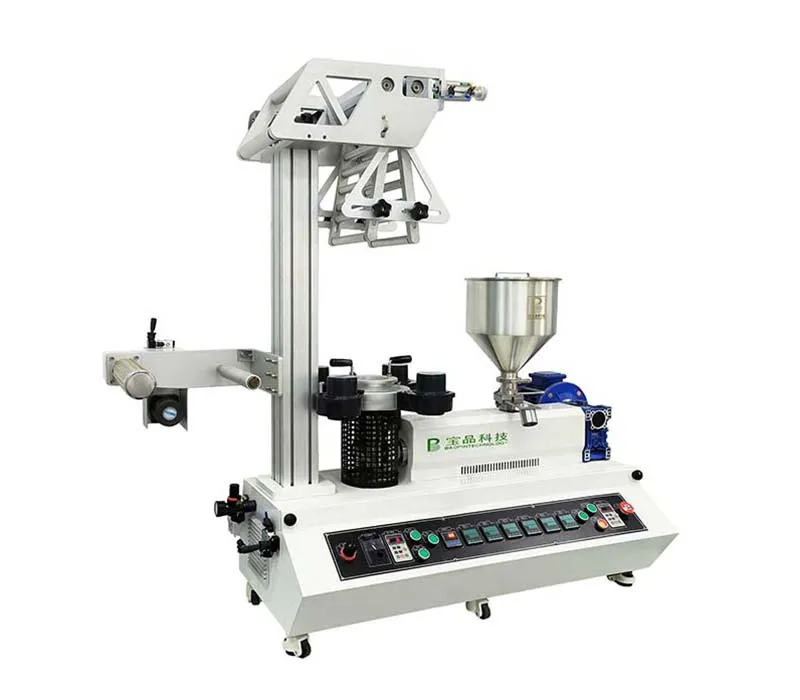

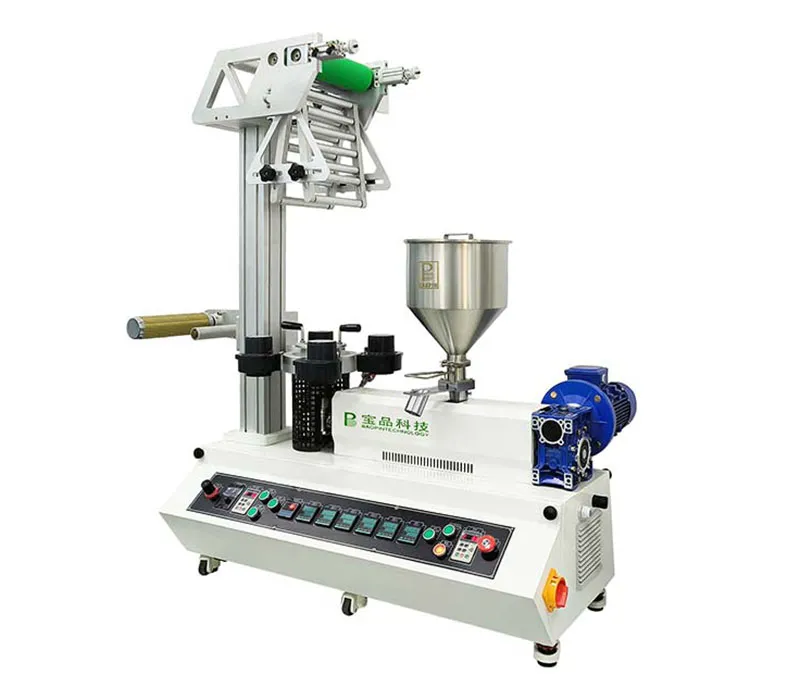

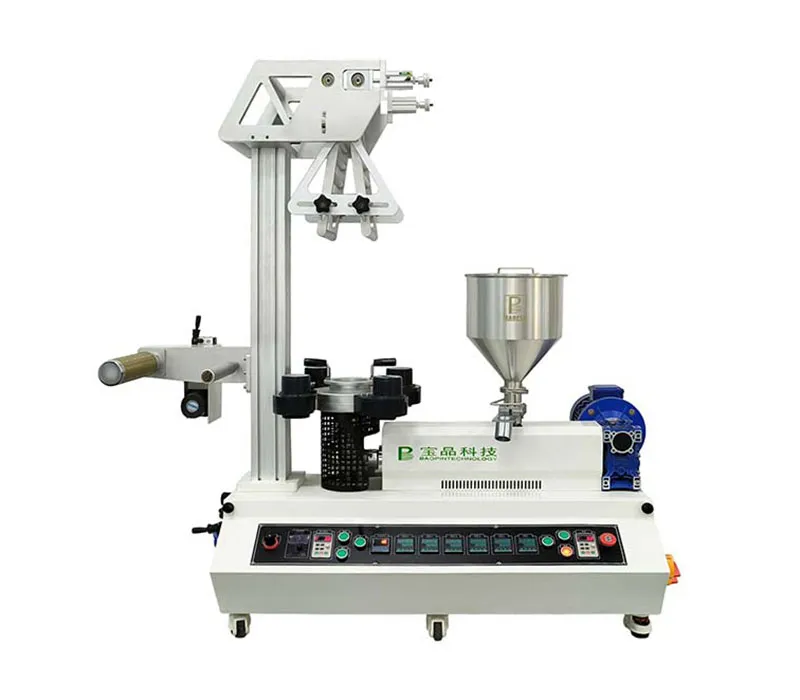

The benchtop laboratory film blowing machine is designed for laboratories and research institutions, offering a compact structure and simple operation. It is ideal for studying polymer dispersion, producing both single-layer and multi-layer films. This benchtop laboratory film blowing can handle various polymer materials, making it perfect for small-batch production and sample testing in a lab setting. Equipped with an accurate temperature control system, adjustable screw speed, and multiple cooling fans, it ensures stable film quality and performance.
Take your polymer research to the next level! Let the benchtop laboratory film blowing machine support your experimental and production needs.
Applications
The Benchtop Laboratory Film Blowing Machine is suitable for polymer dispersion research in laboratories, R&D institutions, and small-scale production.
- Single and multi-layer film production
- Polymer dispersion research and sample testing
- Small-batch production for lab-scale experiments
Technical Data
- Screw diameter
12/15mm (others on request) - L/D ratio
28:1 - Screw speed
0-95rpm, frequency conversion speed regulation - Screw Material
Made of 38CrMoAl chromium-molybdenum steel, the surface is processed with quenching and tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Barrel Material
Made of 45# carbon structural steel, the surface undergoes quenching and tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Heating Zone
3-zone heaters for the barrel, 2-zone heaters for the machine head, externally covered with a safety protective wind hood. - Cooling Device
3 groups of multi-wing fans with super-static forced air cooling. - Control System
PID/LED/RKC intelligent digital display temperature controller, providing high-precision digital instruments to show all extrusion parameters, including temperature control, driving, revolution, pressure, and interlock intercontrol functions. - Safety Protection
Melt pressure is interlocked with the host for overpressure alarm protection; melt temperature is interlocked with the host for low-temperature start-up protection. - Dimensions (W×D×H)
1580×785×1588mm - Power supply
AC380V, 15A, 3 phase - Weight
approx. 155kg
