- Roll size: Ø120× L350mm
- Instrument control
- Electric heating
- Constant speed

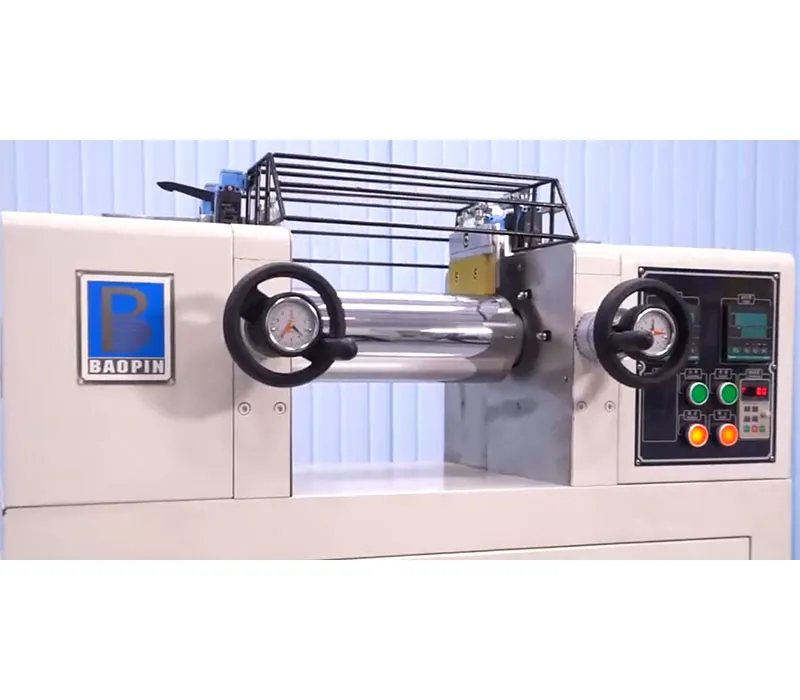

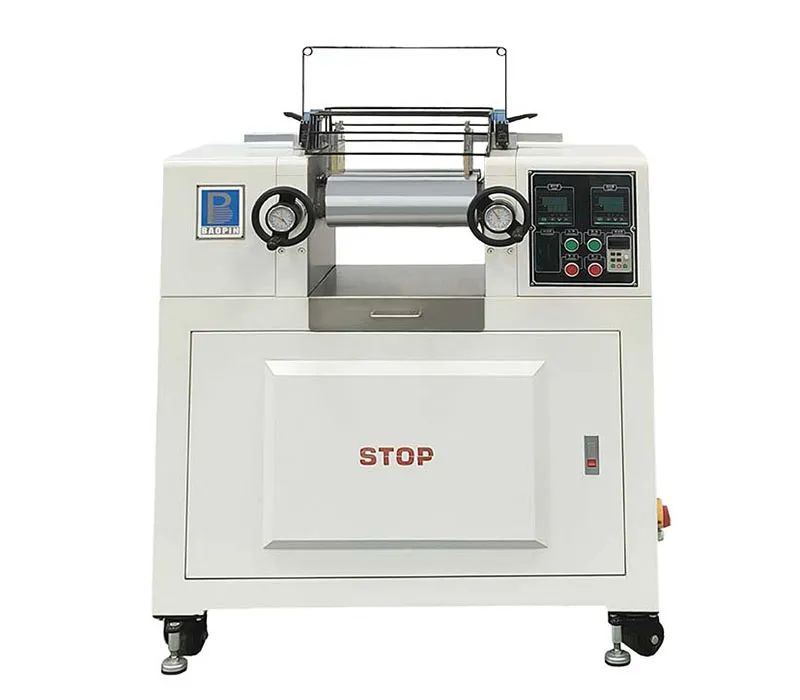

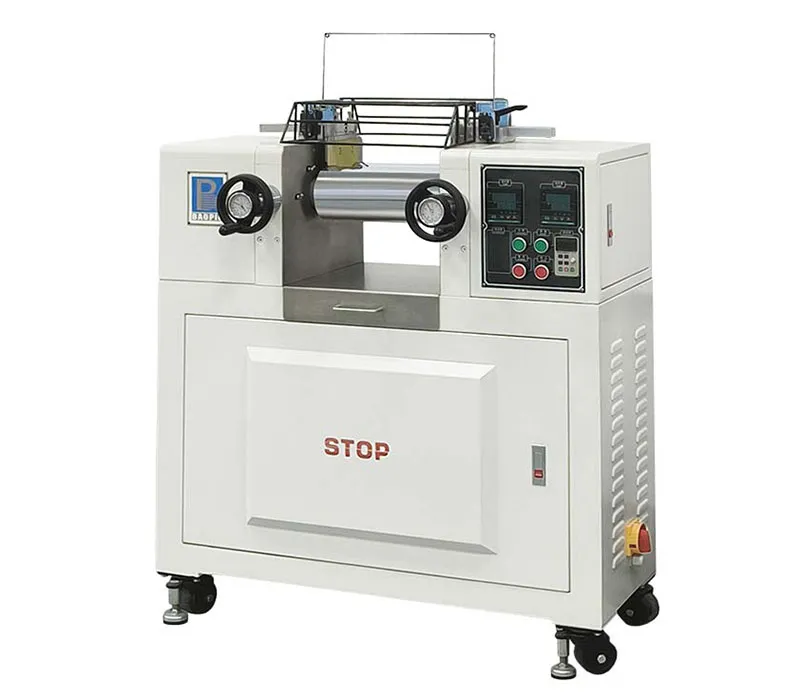

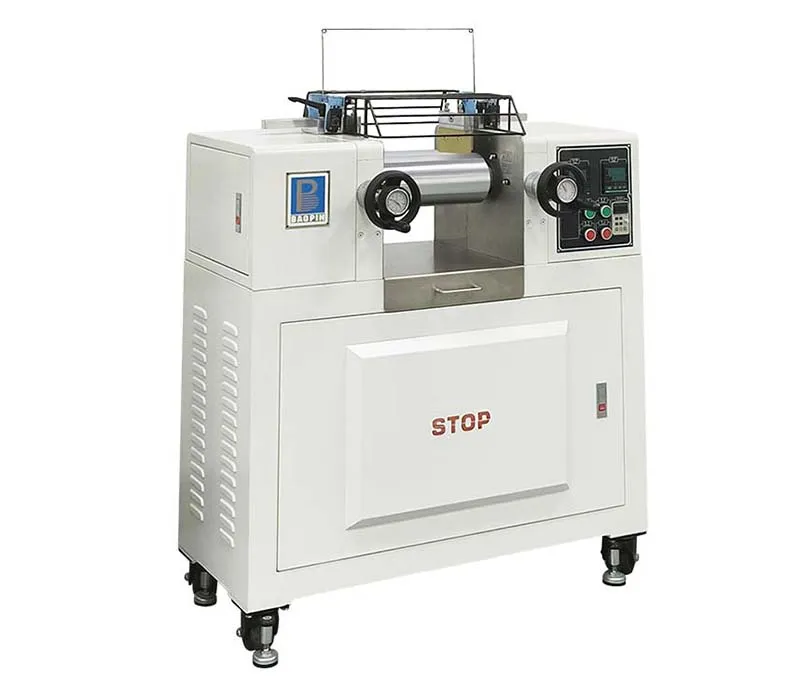

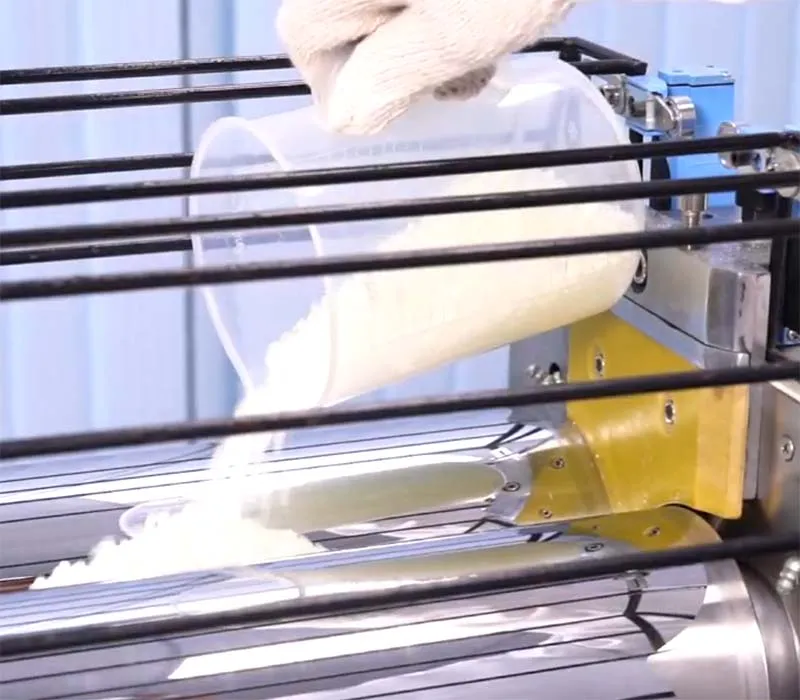

The laboratory two roll mill is designed for the mixing, kneading, and plasticizing of rubber, plastic, and other polymer materials. It is ideal for research, development, and small-batch production of polymer compounds. This laboratory two roll mill features electric heating with uniform roller surface temperature, a roll gap adjustment device, and advanced safety protection. It is user-friendly and safe, making it suitable for lab-scale mixing and testing.
Applications
- Development and experimental research of plastic and rubber compounds
- Homogenization and molding of compounds after internal mixing
- Mixing of curing agents and other additives
- Recycling of rubber, plastic, and similar waste materials
- Sample preparation, process research, and small-scale production
Technical Data
- Temperature range
Room temperature to 300℃ - Temperature control
LED digital display, push button input, digital readout - Heating method
Electric heating - Heat-up time
approx. 30min, 0 to 200℃ - Heating power
5kW - Speed ratio
1:1.27 - Roll size
Ø120× L350mm - Roll gap setting

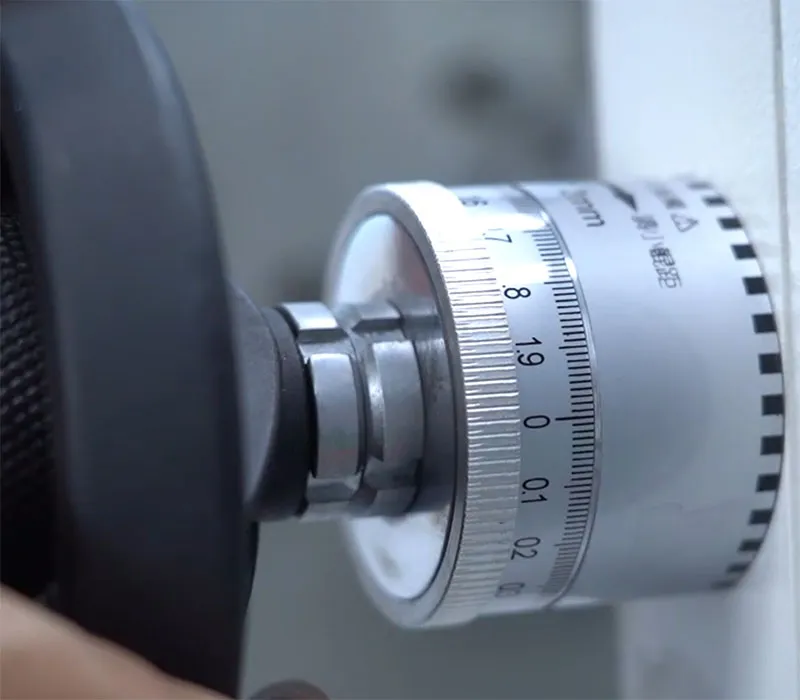

0.1-8mm adjustable - Roll surface
HRC60 chrome plated, with mirror finish - Motor
1.5kW gear motor - Security Protection
Emergency stop rod, inversion with knees (pressing the knee against the "stop" side door, causing the rollers to reverse), protective fence, and other safety devices. - Dimensions (W×D×H)
990×390×1150mm - Power supply
AC380V, 21A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 375kg
