- PLC control
- Screw diameter: 12/15/18/20mm (others on request)
- L/D ratio: 28:1

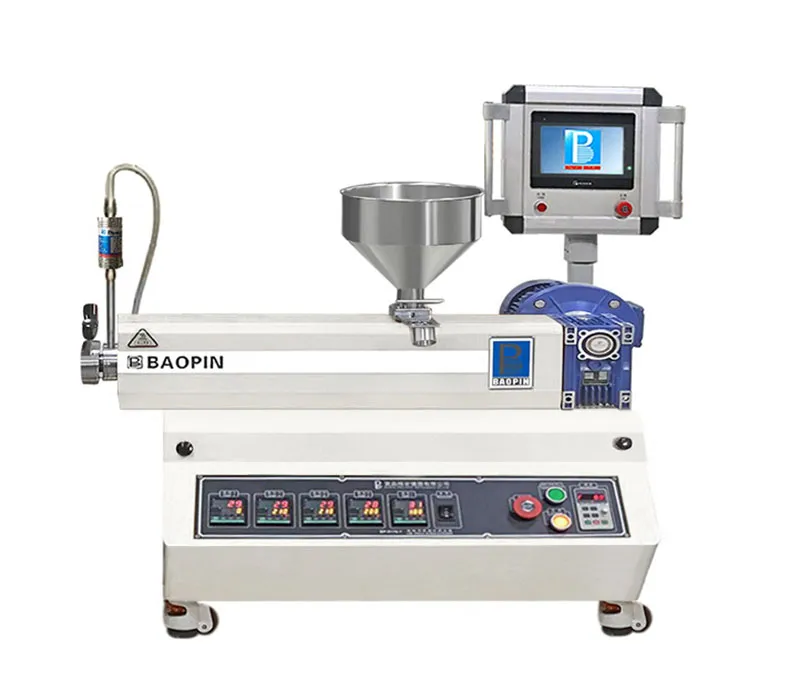

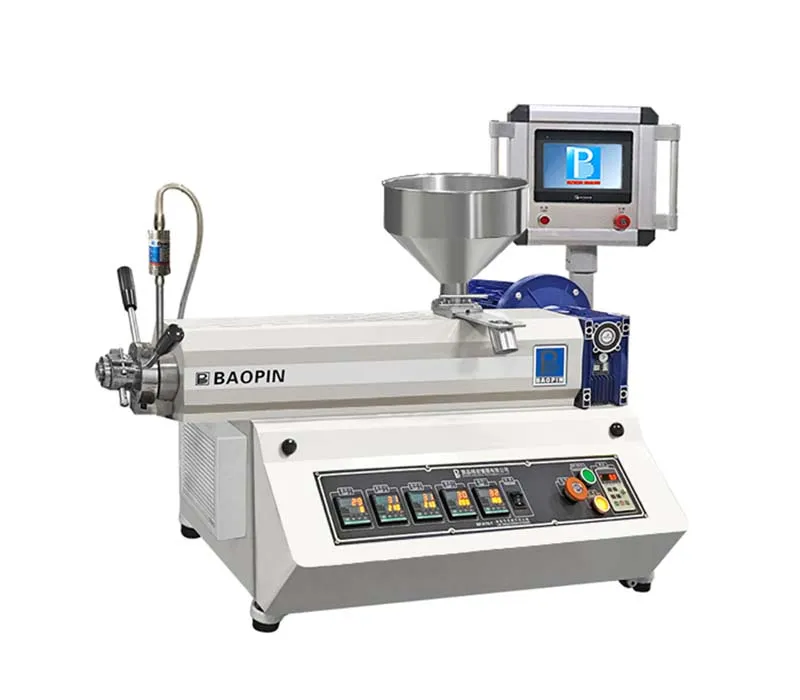

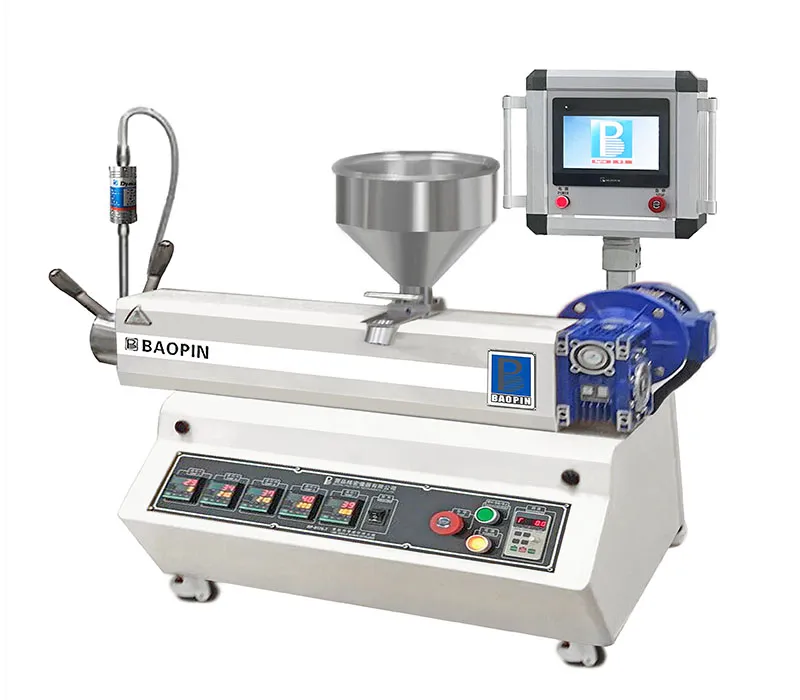

The benchtop laboratory single screw extruder is equipped with a PLC-controlled touch screen that allows for the setting and display of temperatures for each heating zone, along with the screw speed and feeder screw speed. The extruder offers dynamic control via the program, with an intuitive interface, simple operation, and high automation, making it easy to use for various extrusion tasks.
Take your product development and material sampling to the next level with the benchtop laboratory single screw extruder, designed for precision and efficiency.
Applications
The benchtop laboratory single screw extruder is ideal for polymer processing and molding and is widely used in research institutions, university laboratories, and corporate R&D departments for material research and small-batch experimental production. It can simulate continuous and batch processes in plastic processing, such as the production of composite materials and medical materials.
Technical Data
- Temperature range
Room temperature to 300℃ - Screw diameter
12/15/18/20mm (others on request) - L/D ratio
28:1 (others on request) - Rotor speed
0-285rpm, frequency converter speed regulation - Screw Material
38CrMoAl chromium-molybdenum steel, surface treated with tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Barrel Material
45# carbon structural steel, surface treated with tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Heated Zone
4 heaters in the charging barrel area, 1 heater in the handpiece area, externally covered with a safety protective wind hood. - Cooling Device
3 groups of multi-wing fans with super-static forced air cooling. - Melt Temperature
High-precision melt temperature sensor monitors changes in melt temperature. - Melt Pressure
0-40MPa, high-precision melt pressure sensor detects changes in head pressure, with interlock loop control of the host running. - Electric Control System
PID/LED/RKC intelligent digital display temperature controller, high-precision digital instrument shows all of the extrusion parameters, including temperature control, driving, revolution, pressure, interlock, and intercontrol functions. - Safety Protection
Melt pressure is interlocked with the host for overpressure alarm protection; melt temperature is interlocked with the host for low-temperature start-up protection. - Power supply
AC380V, 50Hz, 3-phase 5-wire
