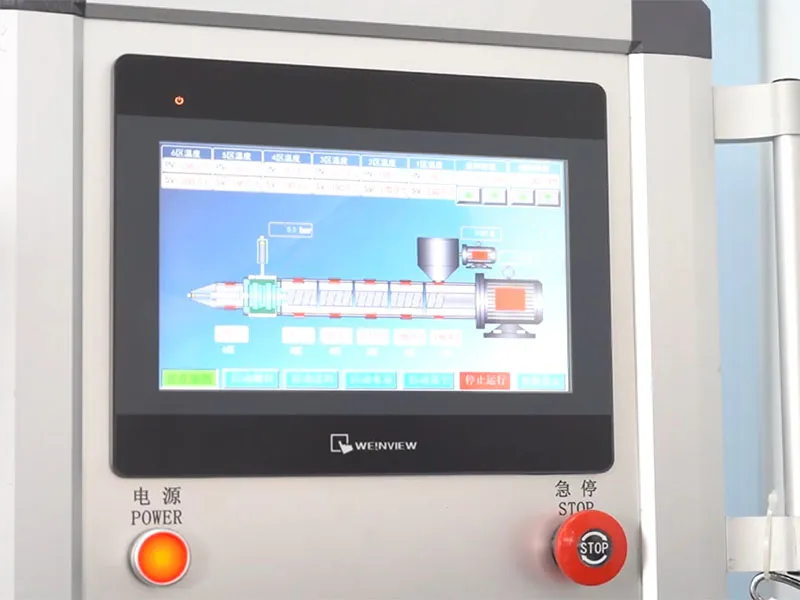

- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 40:1
- Cutting speed: 1-20kg/h adjustable

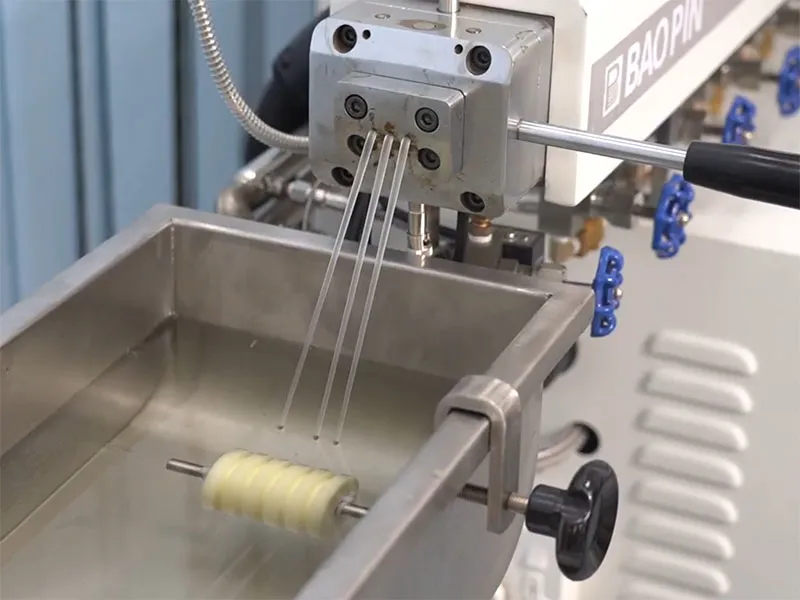

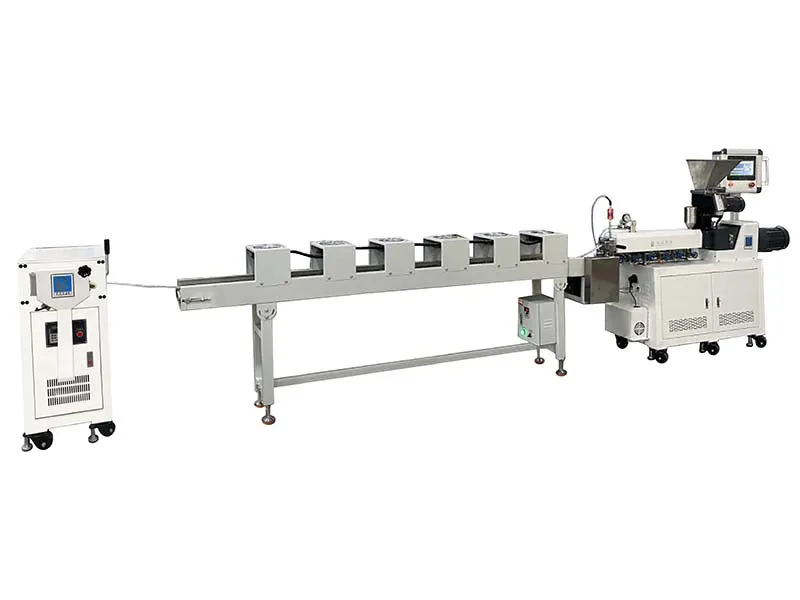

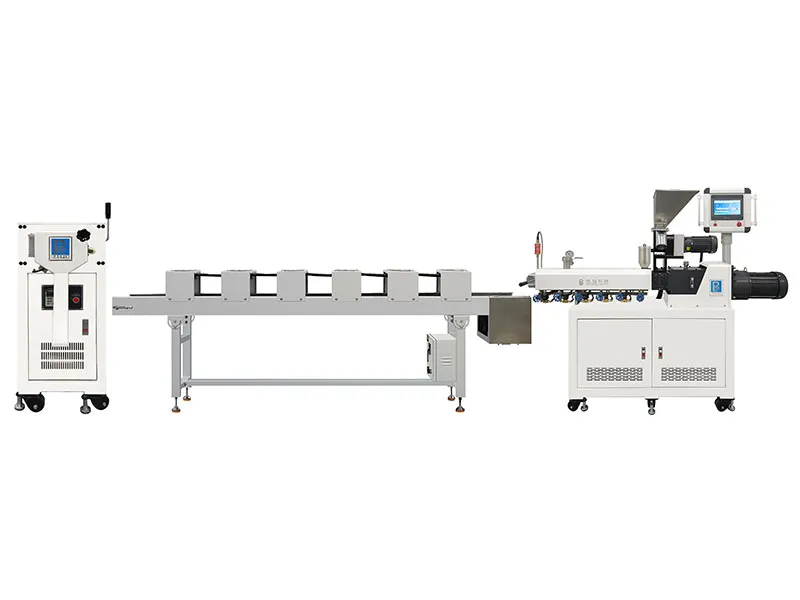

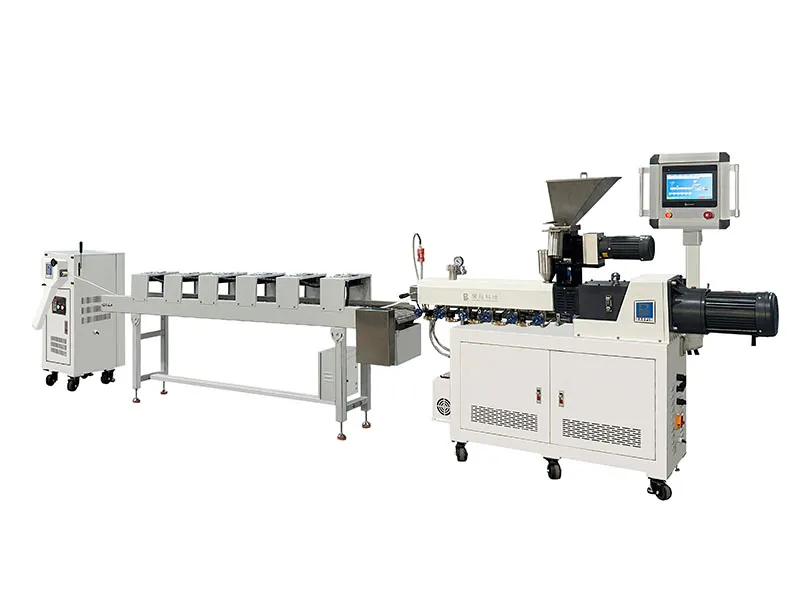

The laboratory twin screw pelletizing line with air cooling conveyor includes a twin screw extruder, air-cooled conveyor, and pelletizer. This system is ideal for engineering plastics, modified plastics, waste plastics, and masterbatch mixing, plastification, and extrusion experiments. It ensures homogeneous plastification, color sampling, and filling modification. The air-cooling system is perfect for resins sensitive to water-cooling media, allowing the cooling of resin strands before pelletizing.
Efficiently process and pelletize sensitive materials with the laboratory twin screw pelletizing line with air cooling conveyor, designed for precise control and performance.
Technical Data
Twin Screw Extruder
- Output
Depending on raw material and process formula - Temperature range
Room temperature to 300℃ - Screw diameter
20mm (others on request) - L/D ratio
40:1 - Screw rotating direction
co-rotating parallel (two screws rotate in the same direction) - Rotor speed
0-280rpm - Power supply
AC380V, 50Hz, 3-phase 5-wire - Dimensions (W×D×H)
1950×500×1500mm - Weight
285kg
Air Cooling Conveyor
- Conveyor belt
Stainless steel mesh belt - Cooling unit
Cooling fan - Dimensions (W×D×H)
3000×360×850mm - Power supply
AC380V, 10A, 3 phase - Weight
166kg

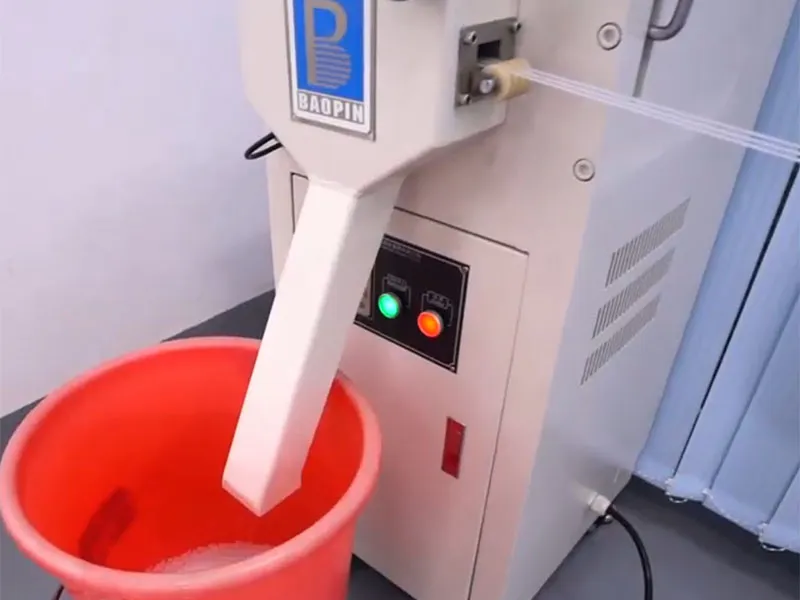

Strand Pelletizer
- Number of strands
3 - Cutting speed
1-20kg/h (adjustable) - Cutter material
high-speed alloy steel - Power supply
AC380V, 10A, 3 phase - Dimensions (W×D×H)
450×430×850mm - Weight
125kg

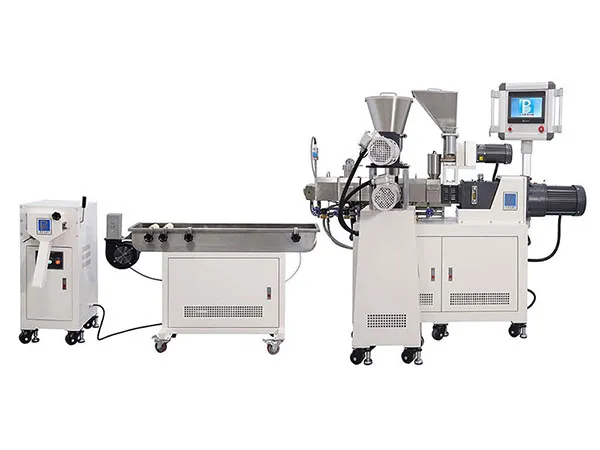

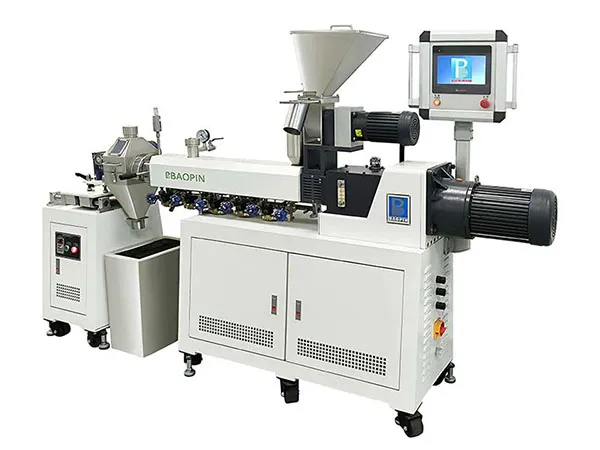

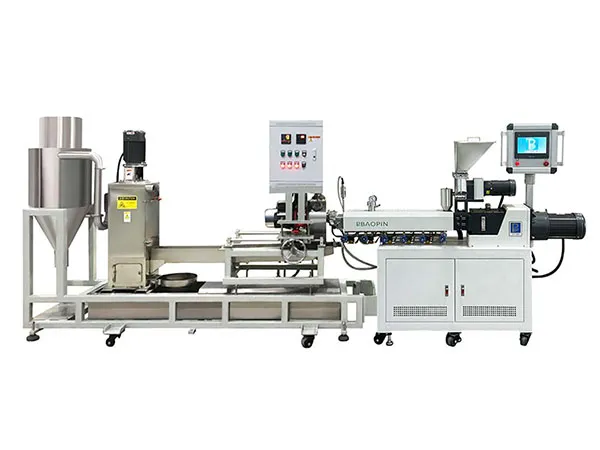

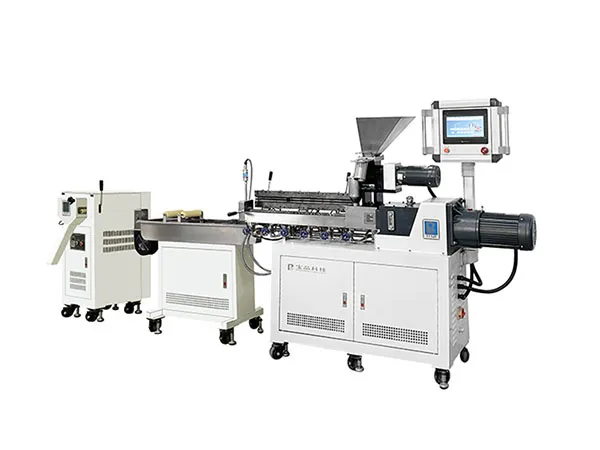

Related Products
