Laboratory Equipment
- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 40:1
- Cutting speed: 1-20kg/h adjustable

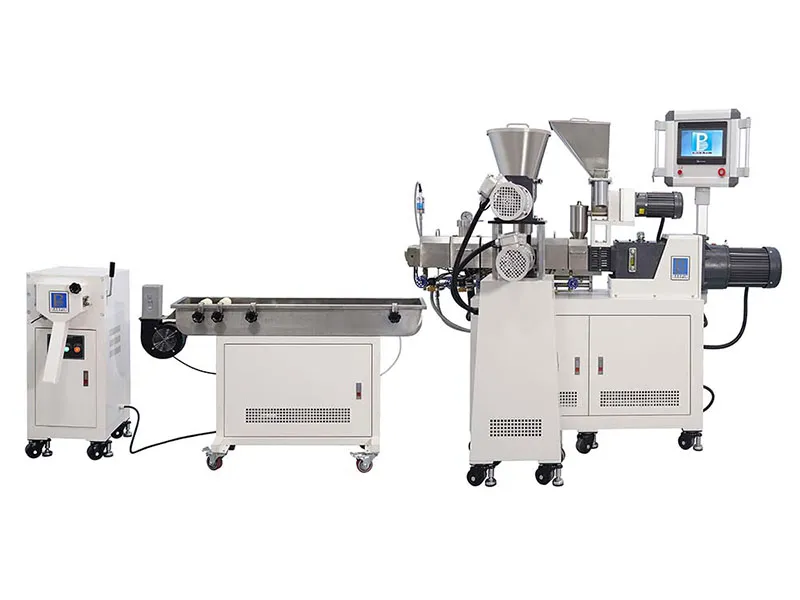

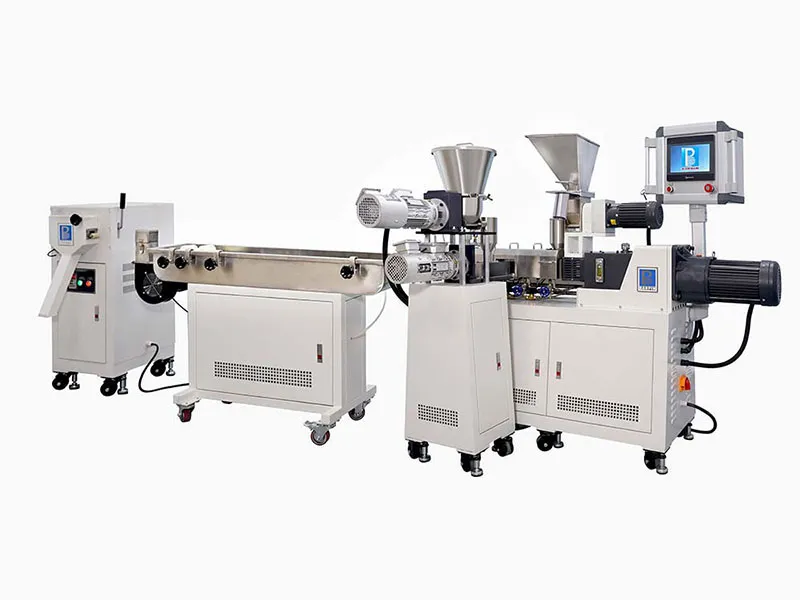

The laboratory twin screw pelletizing line with side force feeder includes a twin screw extruder (main feeding + side feeding), water tank, and pelletizer. This pelletizing system is ideal for mixing, plastification, and extrusion experiments of engineering plastics, modified plastics, and masterbatches. It ensures homogeneous plastification, color sampling, and filling modification. The side feeding system allows for precise control over material ratios and is perfect for adding inorganic materials such as glass fiber, talcum powder, and calcium carbonate during the pelletizing process.
Elevate your material testing and development with the laboratory twin screw pelletizing line with side force feeder, offering precision and efficiency.
Applications
The laboratory twin screw pelletizing line with side force feeder is ideal for:
- Mixing, plastification, and extrusion experiments with engineering plastics, modified plastics, and masterbatches
- Small-scale production and material testing
- Material modification, coloring, filling modification, and the development of additives in the plastics industry
- Incorporating inorganic materials such as glass fiber, talcum powder, and calcium carbonate in the extrusion process
Technical Data
Twin Screw Extruder
- Output
Depending on raw material and process formula - Temperature range
Room temperature to 300℃ - Temperature accuracy
±1℃ - Screw diameter
20mm (others on request) - L/D ratio
40:1 - Screw rotating direction
co-rotating parallel (two screws rotate in the same direction) - Rotor speed
0-280rpm - Main Feeder

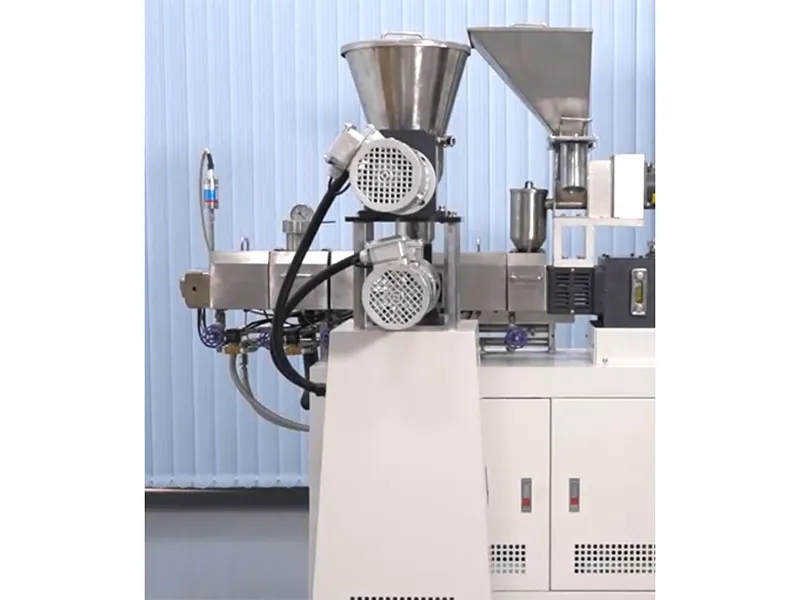

Uses a twin-screw metering type forced feeding system with a horizontal agitator, ensuring uniform and smooth feeding with minimal bridging. Feeding speed is adjustable from 0-50rpm via variable frequency control, and it is equipped with a slide rail-type rapid discharge device. - Side Force Feeder
Fiberglass feeding port, using a twin-screw metering type forced feeding system with a horizontal agitator, with feeding speed adjustable from 0-50rpm via variable frequency control. - Liquid Feeder
Liquid medium feeding port, with peristaltic injection rate adjustable. - Extruder Head
Made of Cr12 chromium-molybdenum alloy, with a nitriding hardness of HRC60. - Electric Control System

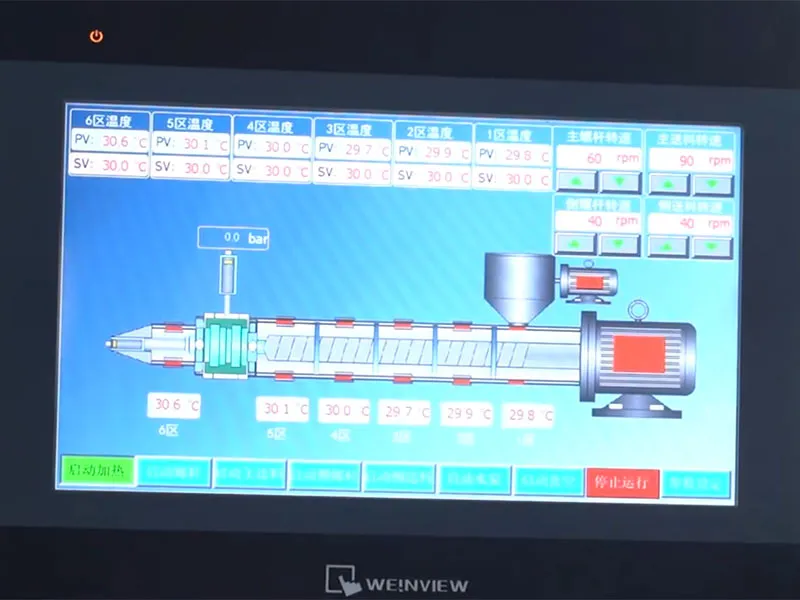

PLC programmable color touch screen, man-machine interface operation system, extrusion process can be dynamically displayed and monitored, including temperature control, driving, speed, pressure, interlocking, and intercontrol functions. - Power supply
AC380V, 50Hz, 3-phase 5-wire - Dimensions (W×D×H)
1950×1210×1500mm - Weight
approx. 285kg
Water Bath
- Material
304 stainless steel - Level control
Stainless steel water level control valve - Dimensions (W×D×H)
1200×260×800mm - Weight
28kg

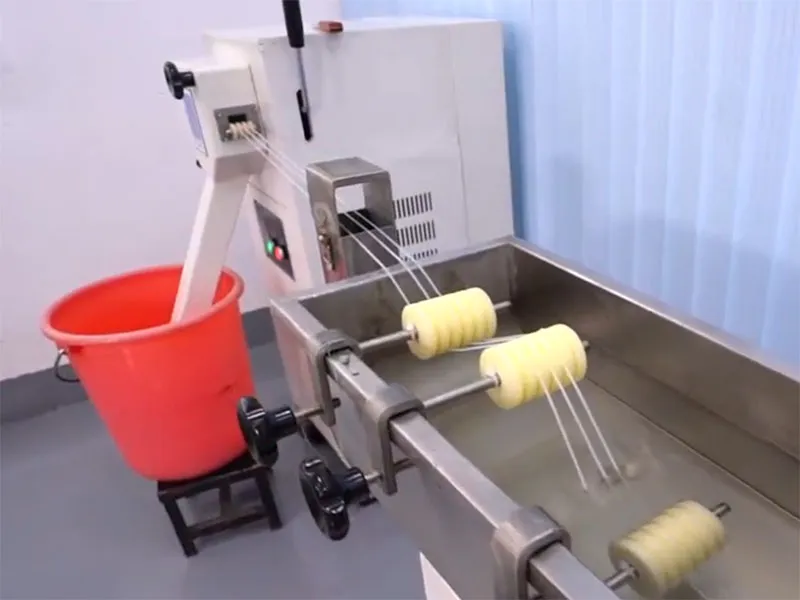

Strand Pelletizer
- Number of strands
3 - Cutting speed
1-20kg/h (adjustable) - Cutter material
high-speed alloy steel - Power supply
AC380V, 10A, 3 phase - Dimensions (W×D×H)
450×430×850mm - Weight
125kg
