Laboratory Equipment
-
Laboratory Equipment

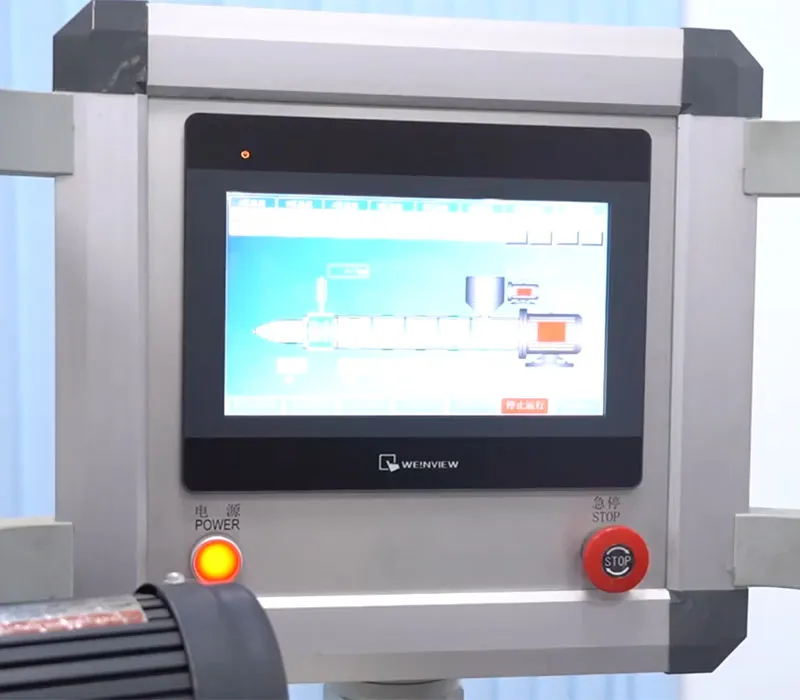

- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 40:1
- Cutting speed: 1-20kg/h adjustable

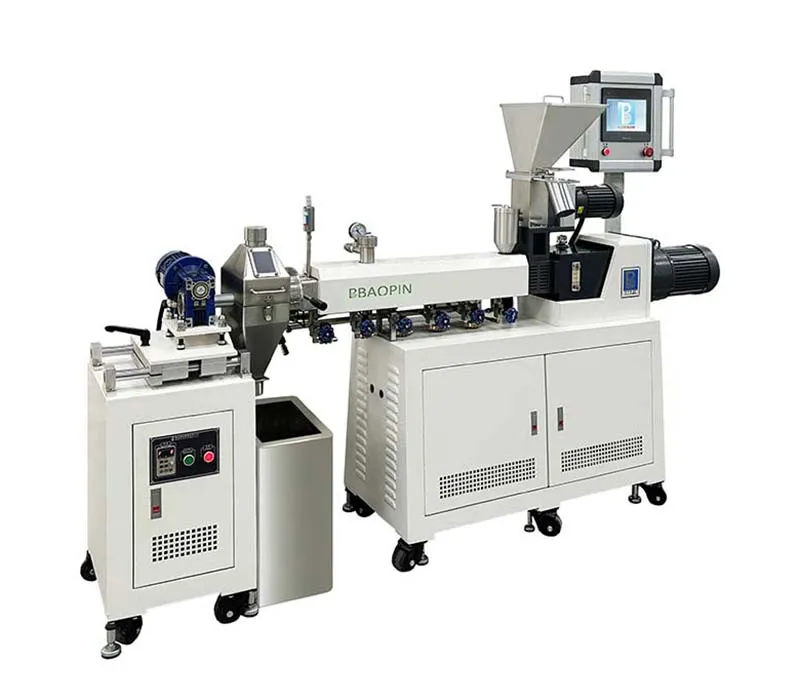

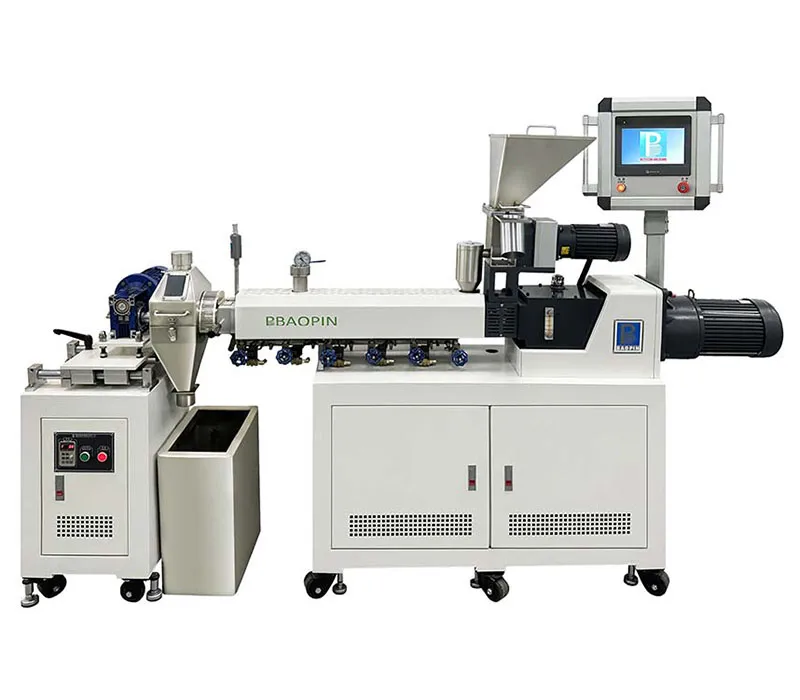

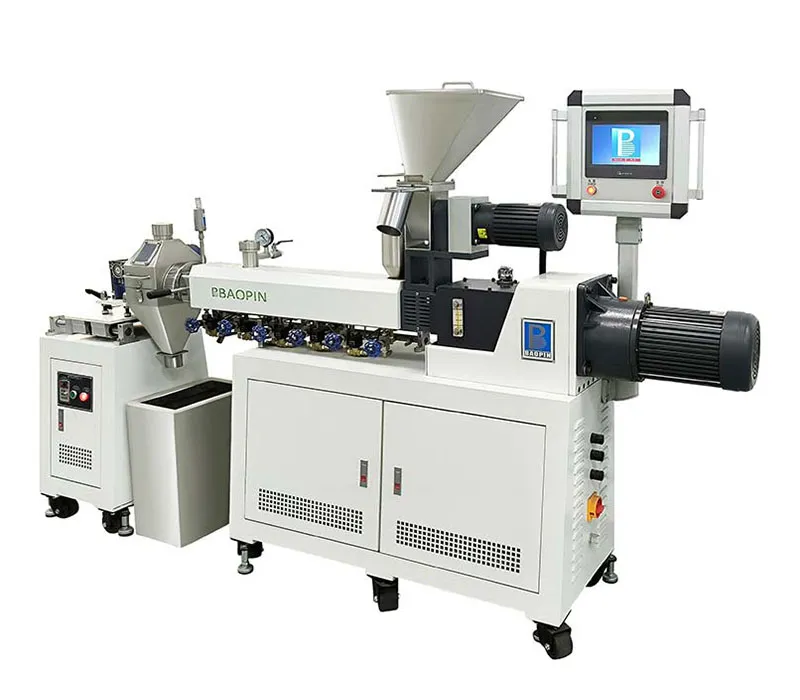

The laboratory twin screw hot die face pelletizing line features a twin screw extruder and pelletizer, designed for efficient pellet production from various polymer materials. This laboratory pelletizing line is ideal for processing soft materials like food-grade, medical, and biodegradable polymers, particularly those prone to moisture absorption, making it suitable for high-quality pelletizing of sensitive materials.
Enhance your material processing with the laboratory twin screw hot die face pelletizing line, designed for precise and efficient pelletizing.
Technical Data

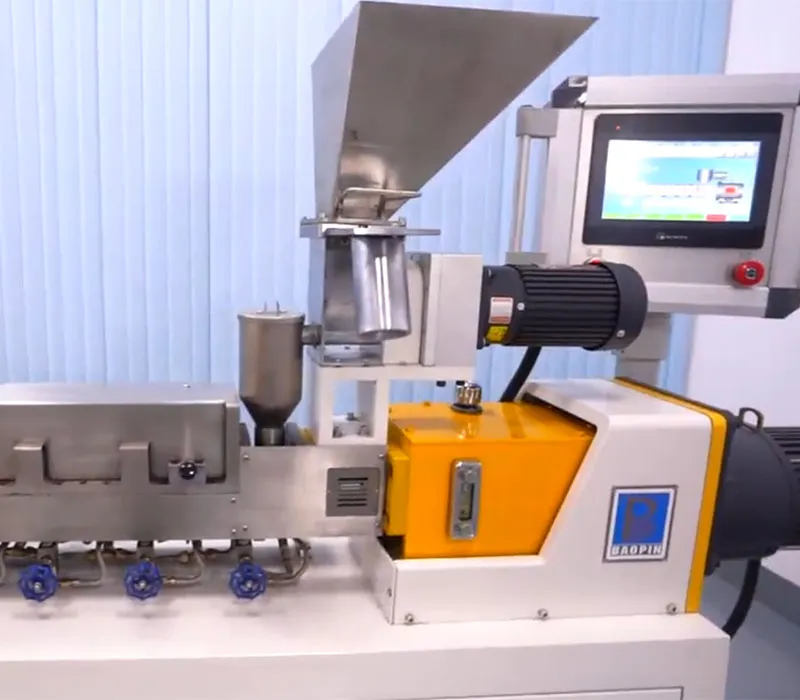

Twin Screw Extruder
- Output
Depending on raw material and process formula - Temperature range
Room temperature to 300℃ - Screw diameter
20mm (others on request) - L/D ratio
40:1 - Screw rotating direction
co-rotating parallel (two screws rotate in the same direction) - Rotor speed
0-280rpm - Power supply
AC380V, 50Hz, 3-phase 5-wire - Dimensions (W×D×H)
1950×500×1500mm - Weight
285kg

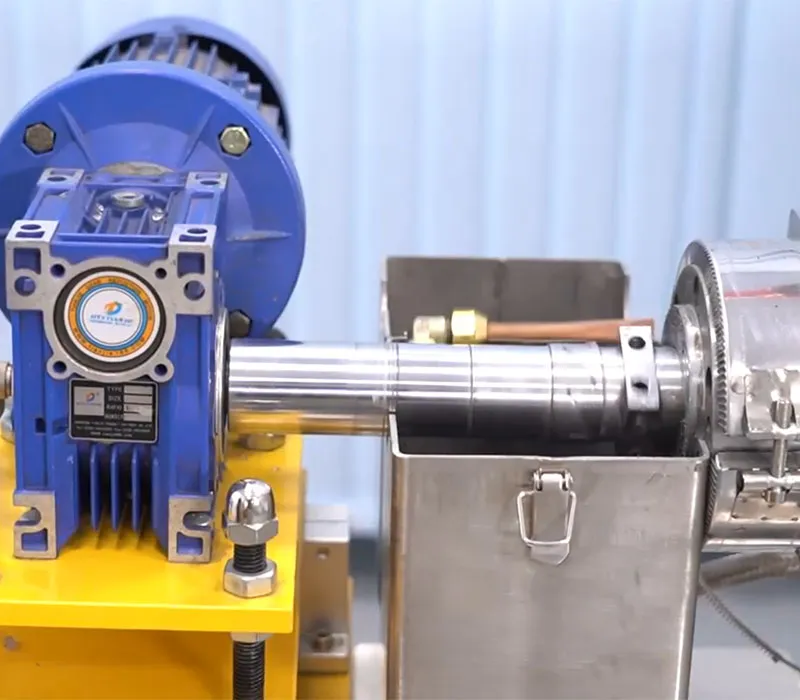

Hot Die Face Pelletizer
- Number of strands
Customizable - Cutting speed
1-20kg/h (adjustable) - Cutter material
high-speed alloy steel - Cooling unit
Powerful cooling fan
