- PLC control
- Screw diameter: 16/20mm (others on request)
- L/D ratio: 28:1

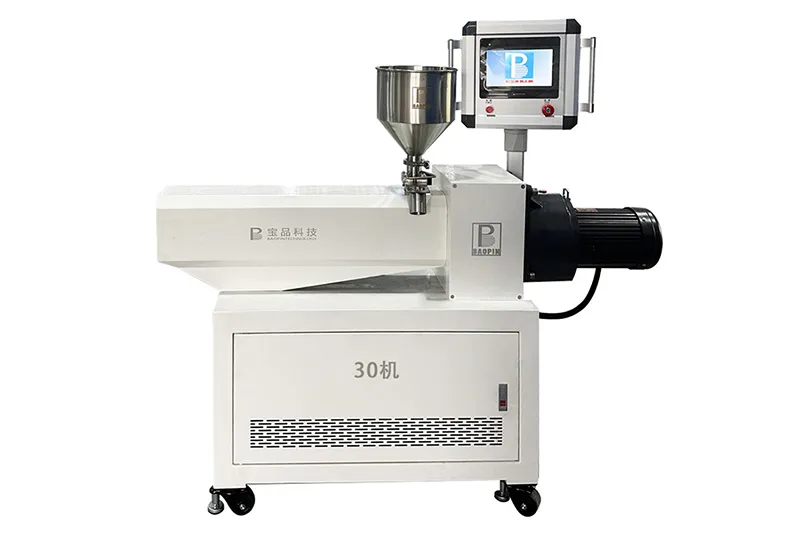

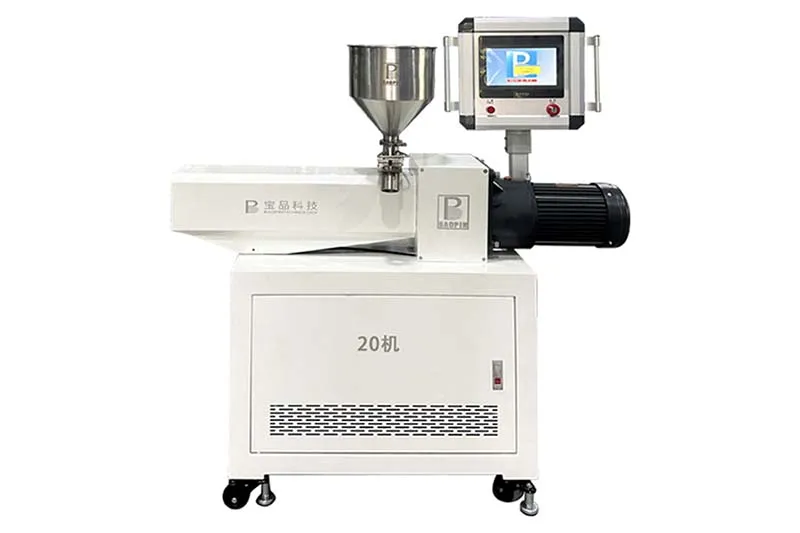

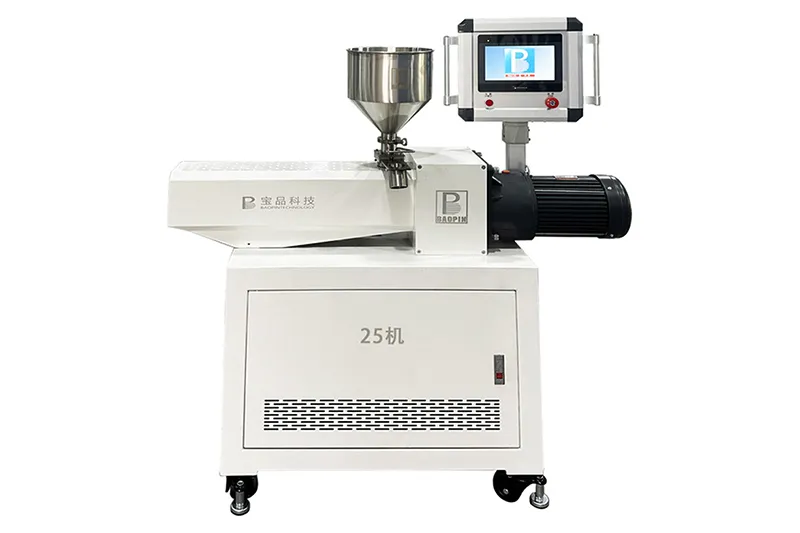

Our screw extruder is designed for the mixing, plastification, and extrusion of engineering plastics, modified plastics, masterbatches, and other polymer materials. It can be integrated with a variety of equipment — including film blowing machines, cast film machines, blow molding machines, and pelletizing machines — to meet different production requirements.
Technical Data
- Temperature range
Room temperature to 300℃ - Screw diameter
16/20mm (others on request) - L/D ratio
28:1 (others on request) - Rotor speed
0-285rpm, frequency converter speed regulation - Screw Material
38CrMoAl chromium-molybdenum steel. The surface undergoes tempering, nitriding, chroming, polishing, and super-precision grinding processes. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Barrel Material
45# carbon structural steel. The surface undergoes tempering, nitriding, chroming, polishing, and super-precision grinding processes. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Heated Zone
3 heaters in the charging barrel area, 2 heater in the handpiece area, externally covered with a safety protective wind hood. - Cooling Device
3 groups of multi-wing fans with super-static forced air cooling. - Electric Control System
PLC programmable color touch screen, man-machine interface operation system, extrusion process can be dynamically displayed and monitored, including temperature control, driving, speed, pressure, and module interlock intercontrol closed-loop control. - Power supply
AC380V, 50Hz, 3-phase 5-wire
