Laboratory Equipment
-
Laboratory Equipment
- Pipe diameter: 1-15mm
- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 28:1

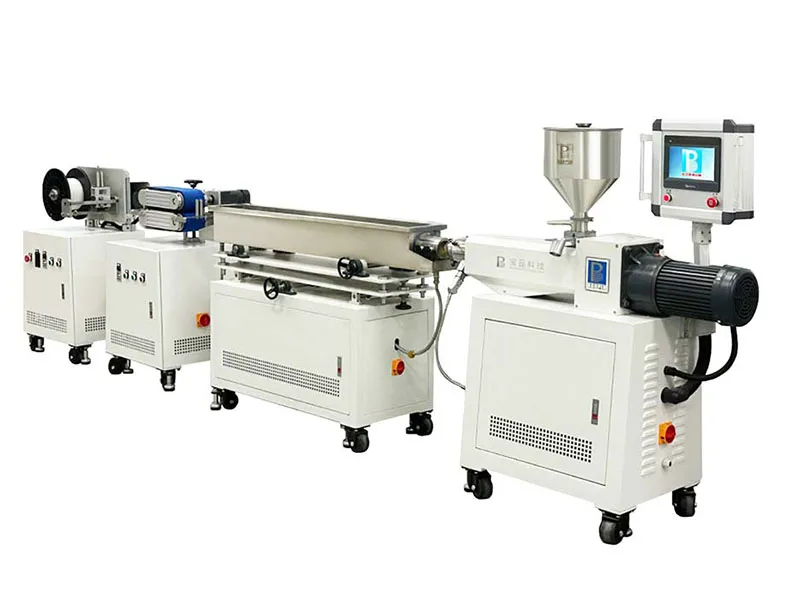

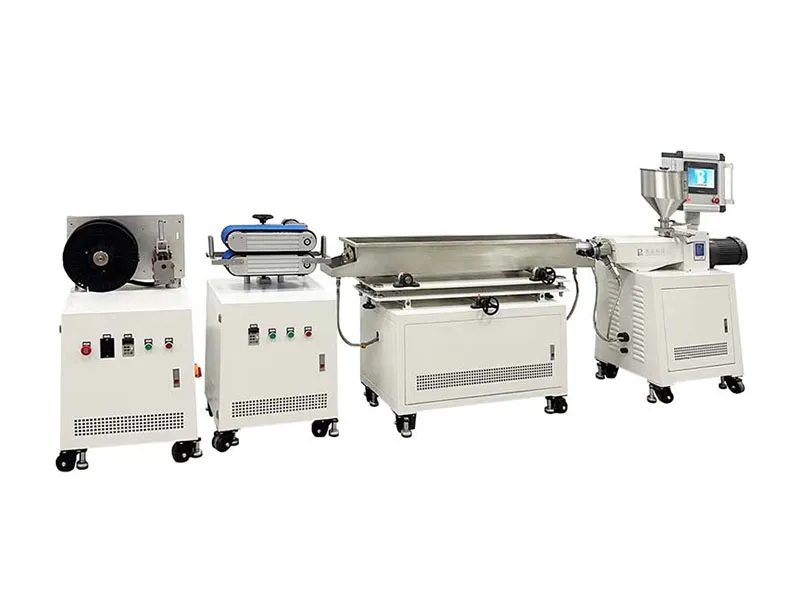

The laboratory plastic pipe extrusion line is designed for precision extrusion of thermoplastic pipes such as pe, pp, ps, pvc, pa, pc, and pu. This extrusion line produces pipes with uniform wall thickness, smooth surfaces, and is easy to operate, ensuring stable production ideal for small-diameter pipe manufacturing.
Streamline your small-diameter pipe production with precision! Let the laboratory plastic pipe extrusion line enhance your research and production capabilities.
Applications
The laboratory plastic pipe extrusion line is perfect for the extrusion of small-diameter pipes, plastic tubing, and medical catheters, making it ideal for:
- Small-diameter pipe production

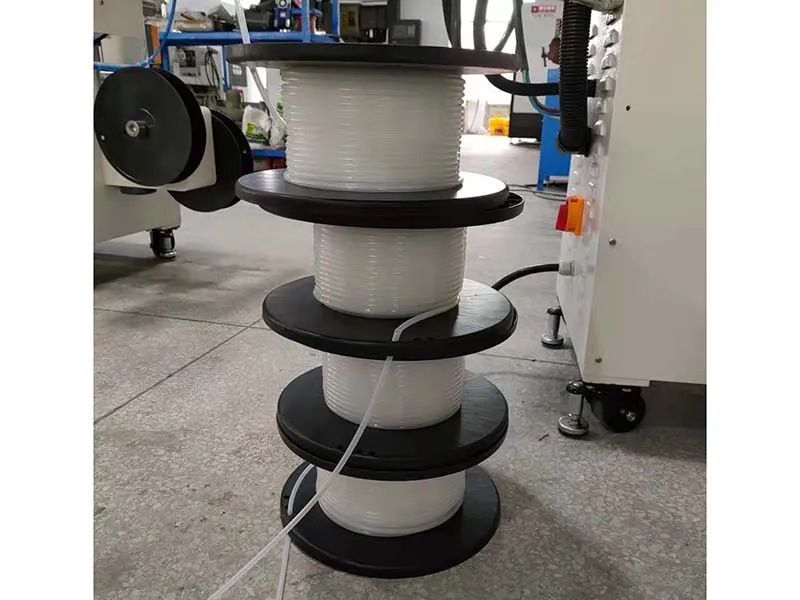

- Plastic tubing production
- Medical tubing extrusion
Technical Data
- Temperature range
Room temperature to 300℃ - Screw diameter
20mm (others on request) - L/D ratio
28:1 - Screw speed
0-95rpm, frequency conversion speed regulation - Screw Material
38CrMoAl chromium-molybdenum steel. The surface undergoes quenching and tempering, nitriding, chroming, polishing, and super-precision grinding processes. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Barrel Material
45# carbon structural steel. The surface undergoes quenching and tempering, nitriding, chroming, polishing, and super-precision grinding processes. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Heating Zone
3 zone heaters for the barrel, 2 zone heaters for the machine head, external covering with a safety protective wind hood. - Cooling Device
3 groups of multi-wing fans with super-static forced air cooling. - Melt Temperature
High-precision melt temperature sensor monitors melt temperature changes. - Melt Pressure
0-40MPa high-precision melt pressure sensor detects changes in head pressure, with interlock loop control of the host running. - Control System
PLC programmable color touch screen, man-machine interface operation system, extrusion process can be dynamically displayed and monitored, including temperature control, driving, speed, pressure, interlock, and intercontrol functions. - Power supply
AC380V, 50Hz, 3-phase 5-wire
