BP-8176-P Laboratory Plastic Sheet Extrusion Line

Laboratory single screw extrusion line for the production of flat sheets made from thermoplastic polymers

Request a Quote
Products Brochure
BP-8176-P Laboratory Plastic Sheet Extrusion Line
  • BP-8176-P Laboratory Plastic Sheet Extrusion Line
  • BP-8176-P Laboratory Plastic Sheet Extrusion Line
  • BP-8176-P Laboratory Plastic Sheet Extrusion Line
  • BP-8176-P Laboratory Plastic Sheet Extrusion Line
    • BP-8176-P Laboratory Plastic Sheet Extrusion Line
    • Sheet witdh: 150mm
    • Sheet thickness: 0.5-1mm
    • PLC control
    • Screw diameter: 20mm (others on request)
    • L/D ratio: 28:1

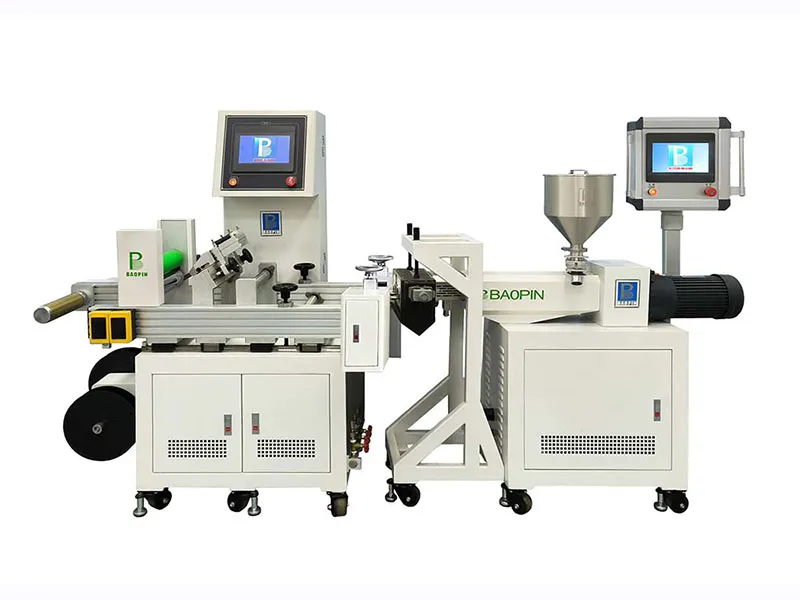

    The laboratory plastic sheet extrusion line is a precision extrusion machine designed for the production of flat thermoplastic sheets. It uses a 38crmoal chromium-molybdenum alloy screw, ensuring superior wear resistance. With precise temperature control up to 300℃, it provides optimal extrusion conditions for a wide range of materials.

    Elevate your sheet production with precision and stability! Let the laboratory plastic sheet extrusion line meet your polymer processing needs.

    Applications
    The laboratory plastic sheet extrusion line is ideal for extruding sheets made from a variety of thermoplastic polymers, including:

    • PE, PP, PS, PVC, PA, PC, PET, EVA, and ABS
    Technical Data
    • Temperature range
      Room temperature to 300℃
    • Screw diameter
      20mm (others on request), with mixing and dispersing functions
    • L/D ratio
      28:1
    • Screw speed
      0-150rpm, frequency conversion speed regulation
    • Screw Material
      38CrMoAl chromium-molybdenum alloy, the surface is treated by quenching and tempering, nitriding, chrome plating, polishing, and ultra-fine grinding processes. Roughness Ra ≤0.4μm, depth of nitriding layer ≥0.6mm, hardness HRC55~60.
    • Barrel Material
      5# carbon structural steel, the surface is treated by quenching and tempering, nitriding, chrome plating, polishing, and ultra-fine grinding processes. Roughness Ra ≤0.4μm, depth of nitriding layer ≥0.6mm, hardness HRC55~60.
    • Heating Zone
      3 zone heaters for the barrel, 2 zone heaters for the machine head, external covered with safety protective wind hood.
    • Cooling Device
      3 groups of multi-wing fans with super-static forced air cooling.

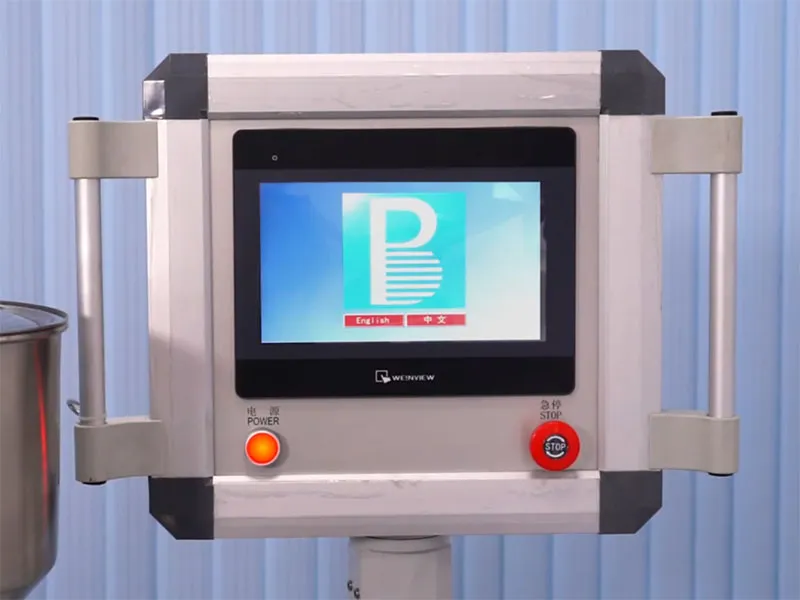

    • Control System
      PLC programmable color touch screen, man-machine interface operation system. The extrusion process can be displayed and monitored dynamically, including temperature control, driving, speed, pressure, interlocking, and intercontrol function.
    • Safety Protection
      The melt pressure is interlocked with the host for overpressure alarm protection; the melt temperature is interlocked with the host for low temperature start-up protection.
    • Power supply
      AC380V, 50Hz, 3-phase 5-wire
