- 10/20 Ton Capacity (others on request)
- Single set of pressing platens
- Electric heating of both upper and lower platens

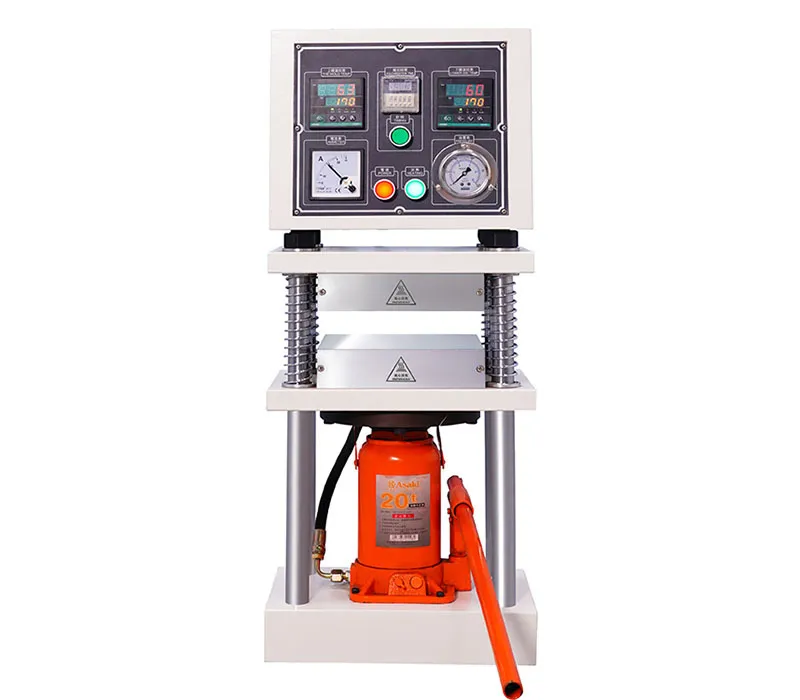

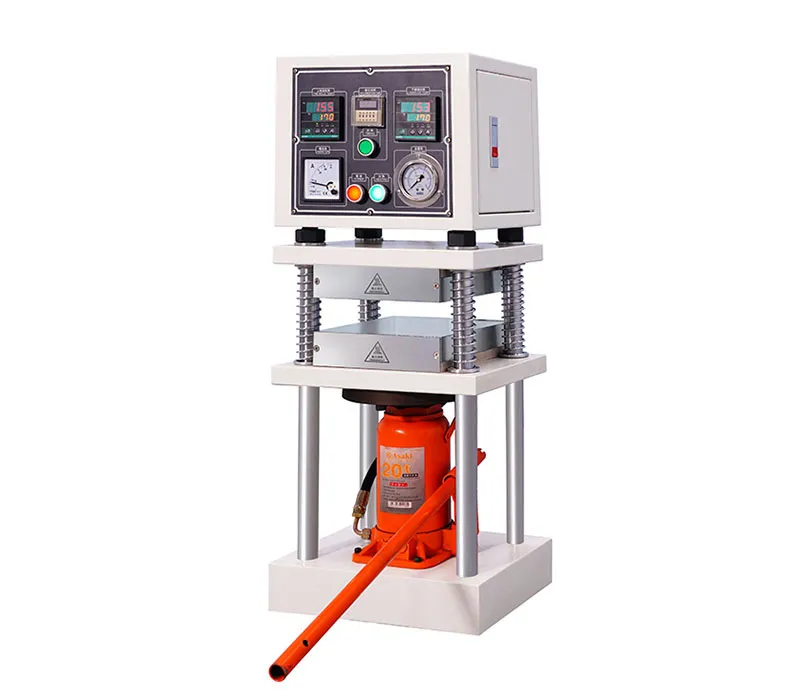

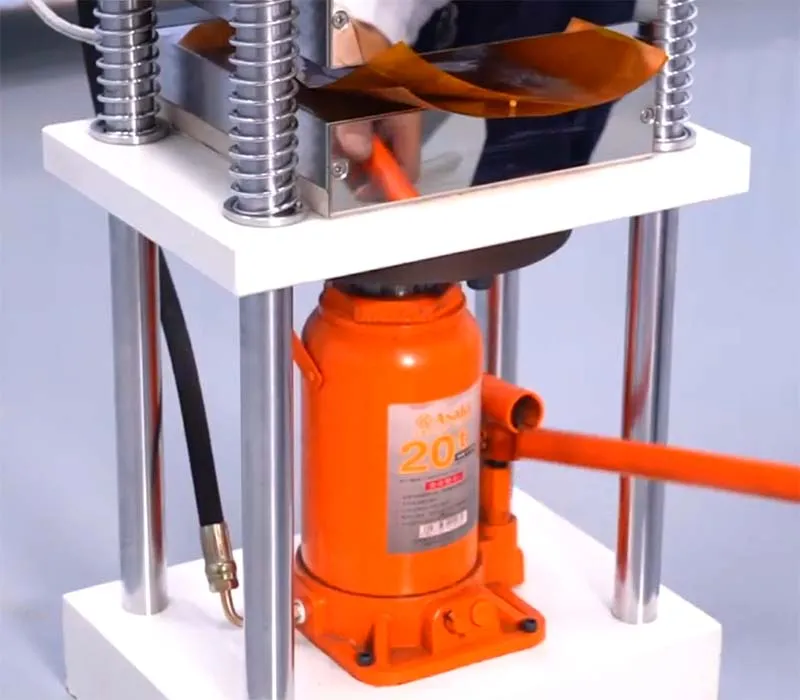

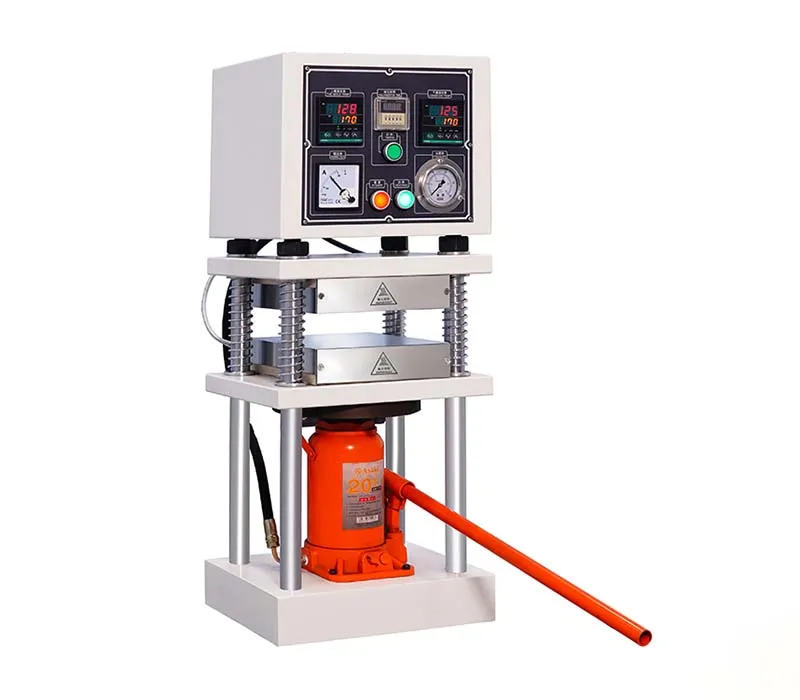

The manual laboratory hydraulic press uses a hydraulic jack as the pressure source, with a rated pressure of 10 tons or 20 tons (other capacities available upon request). Both vulcanization temperature and time can be freely set. It offers manual pressure application and release, with simple operation, making it economical and practical.
Get in touch with us today to find the right manual laboratory hydraulic press solution for your lab.
Applications
Vulcanization compression molding of materials such as plastics, rubber, and more.
Technical Data
- Capacity
10/20 tons (others on request) - Temperature range
Room temperature to 300℃ - Temperature control

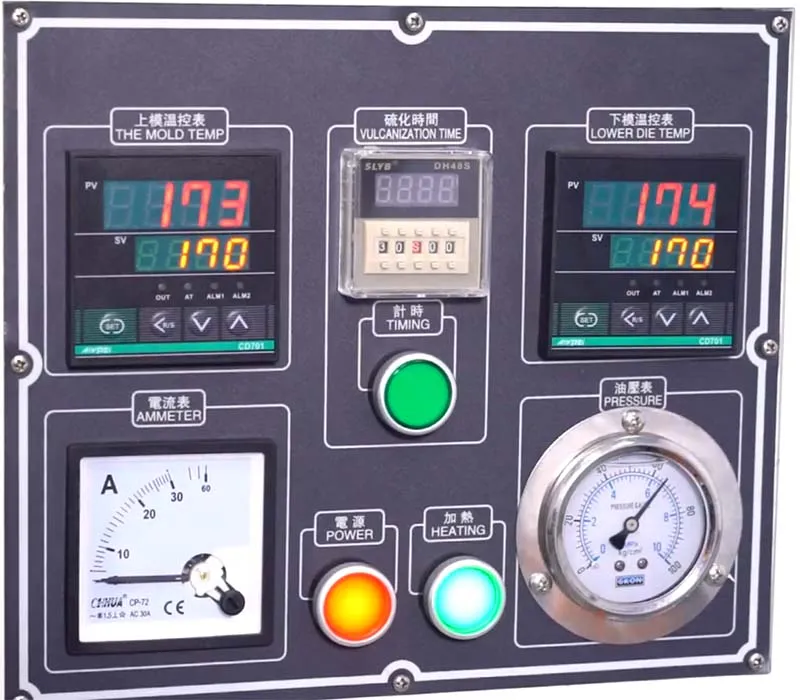

LED digital display, push button input, digital readout - Temperature accuracy
±2.5℃ - Heating method
Electric heating - Pressing platen size
220×220×40mm - Pressing platens
1 set of pressing platen, electric heating of both upper and lower platens - Open daylight
60mm - Platen materials
Chromium-molybdenum alloy - Platen surface
HRC60 chrome plated, with mirror finish - Pressure gauge
0-350kg/cm² - Dimensions (W×D×H)
346×220×900mm - Power supply
220V, 15A, single-phase (power connection port is provided by user) - Weight
approx. 98kg
