- 50/100/300 Ton Capacity (others on request)
- PLC control
- Double set of pressing platens
- Electric heating of upper set of platens, water cooling of lower set of platens

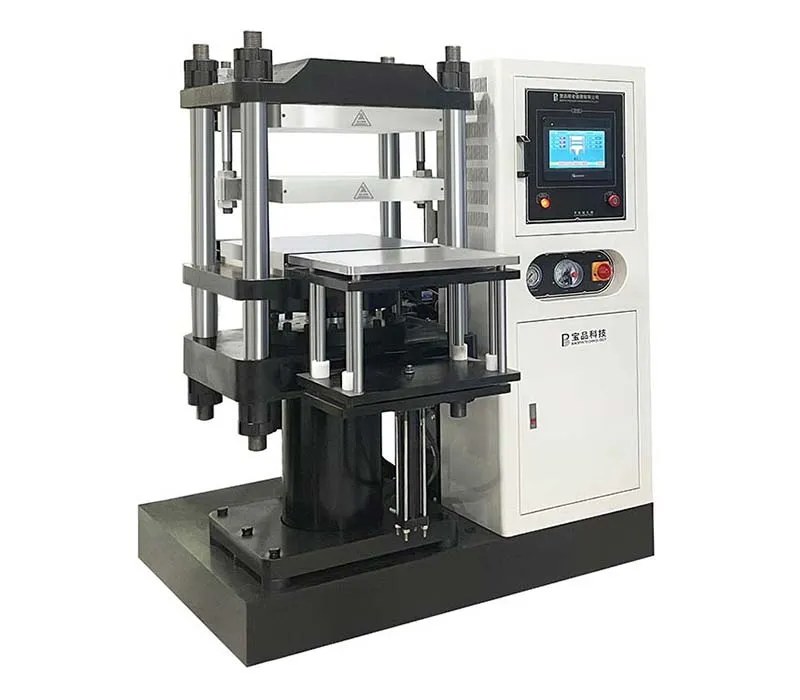

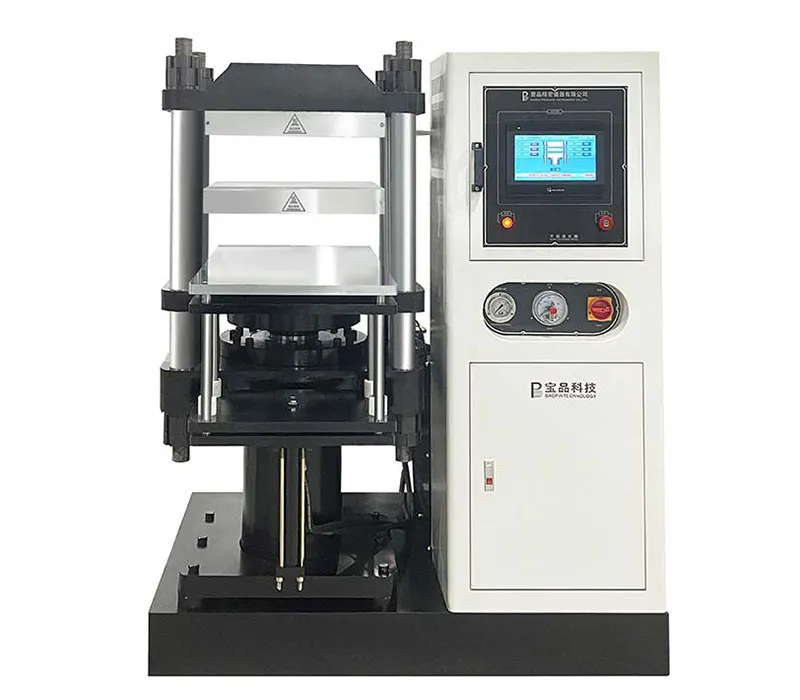

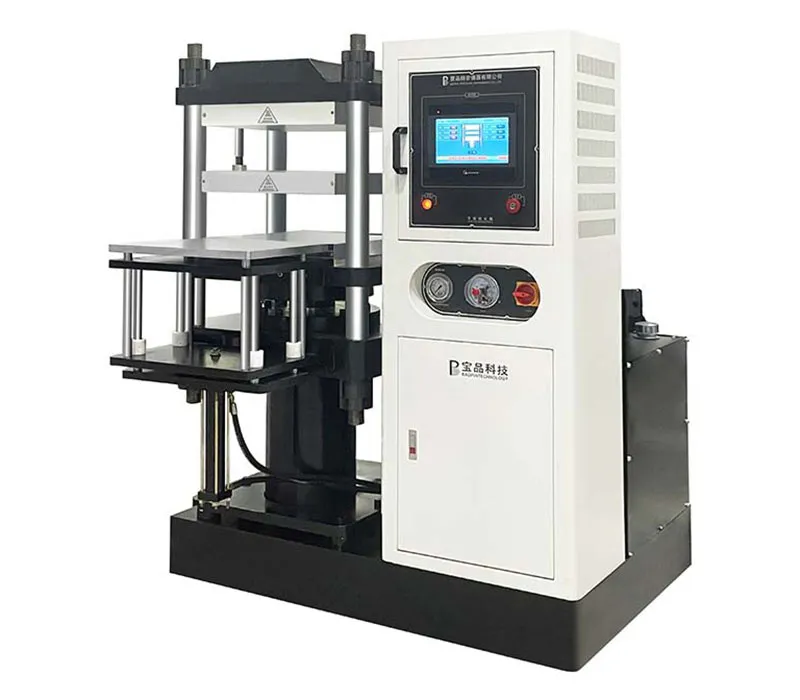

The large-tonnage laboratory hydraulic press is designed for the compression molding and vulcanization of rubber, plastics, resins, and other polymer materials. It features a PLC programmable LCD display, allowing operators to set pressure, temperature, time, and exhaust cycles. The real-time display and monitoring of the vulcanization process (vulcanization curve) ensures optimal results, while the entire molding program is fully automated. The press's simple structure and high efficiency make it a versatile and reliable solution for a wide range of applications.
Contact us today to learn how the large-tonnage laboratory hydraulic press can improve your testing and production processes.
Technical Data
- Capacity
50/100/300 Ton Capacity (others on request) - Temperature range
Room temperature to 300℃ - Temperature accuracy
±4℃ - Controller
PLC programmable color touch screen with a man-machine interface operating system, featuring an intuitive vulcanization curve interface. It provides dynamic display and monitoring of the mold pressure process and allows for control over all mold pressure circulation. - Cooling Method
Tap water cooling (Water connection port supplied by the customer). - Pressing platens
2 sets of pressing platens, electric heating of upper set of platens, water cooling of lower set of platens - Heating platen size
300×300mm/400×400mm/500×500mm (other sizes are customizable) - Cooling platen size
300×300mm/400×400mm/500×500mm (other sizes are customizable) - Open daylight
150mm - Oil Pressure System
The proportional hydraulic flow valve circulation control system features automatic pressure compensation, pressure maintenance, and delayed oil pump shutdown. It operates in a dual-speed working mode, using high approach speed for low pressure and low approach speed for high pressure. Multiple exhaust times can be set to ensure that the template pressure reaches saturation. - Dimensions (W×D×H)
1500×1000×1650mm - Power supply
AC380V, 21A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 1.5T
