Laboratory Equipment
- 50/100/300 Ton Capacity (others on request)
- PLC control
- Single set of pressing platens per station
- Heating or cooling on pressing platens of left and right stations

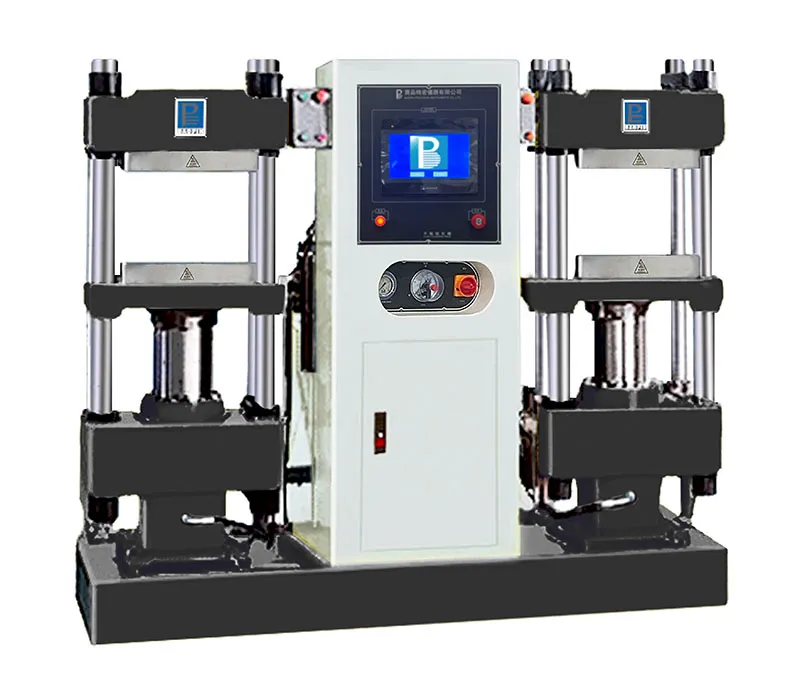

The double station laboratory hydraulic press is designed for the compression molding and vulcanization of rubber, plastics, resins, and other polymer materials. It comes equipped with a programmable LCD display, allowing for easy adjustment of pressure, temperature, time, and exhaust cycles. The real-time display and monitoring of the vulcanization process (vulcanization curve) ensures optimal results, while the entire molding program is fully automated. The press is known for its powerful pressure, wide applicability, and high efficiency, making it ideal for a variety of testing and production environments.
Reach out today to discover how the double station laboratory hydraulic press can streamline your production and testing processes.
Technical Data
- Capacity
50/100/300 Ton Capacity (others on request) - Temperature range
Room temperature to 300℃ - Temperature accuracy
±2℃ - Controller
PLC programmable color touch screen with a man-machine interface operating system, featuring an intuitive vulcanization curve interface. It allows for dynamic display and monitoring of the mold pressure process and provides control over all mold pressure circulation. - Pressing platens
1 set of pressing platens per station (two stations in total), heating or cooling on pressing platens of left and right stations - Pressing platen size
400×400mm/500×500mm (other sizes are customizable) - Open daylight
300mm - Oil Pressure System
The closed-loop control system with electro-hydraulic proportional servo valve offers automatic pressure compensation, pressure maintenance, and oil pump delayed shutdown. It operates in a dual-speed working mode, with high approach speed for low pressure and low approach speed for high pressure. Multiple exhaust times can be set to ensure that the template pressure reaches saturation. - Oil Pressure Media
Mobil 32# anti-freezing hydraulic oil (provided by the customer). - Cylinder Speed
11~50mm/s with a dual-speed working mode: fast rise, slow lock, and fast fall function. - Dimensions (W×D×H)
2000×980×1650mm - Power supply
AC380V, 60A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 2T
